Tirfor
2. No limitation in terms of cable length
3. Manageable, light-weight, robust, powerful
4. Increase load capacity with deflection sheaves
Product advantages

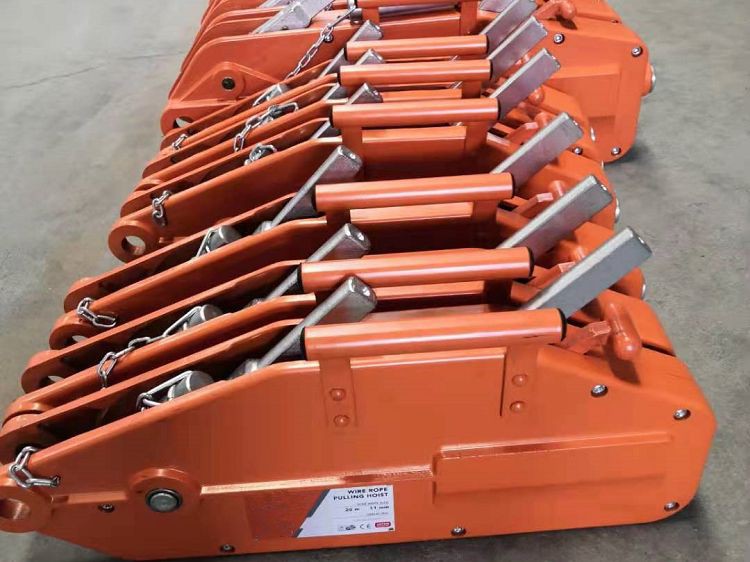

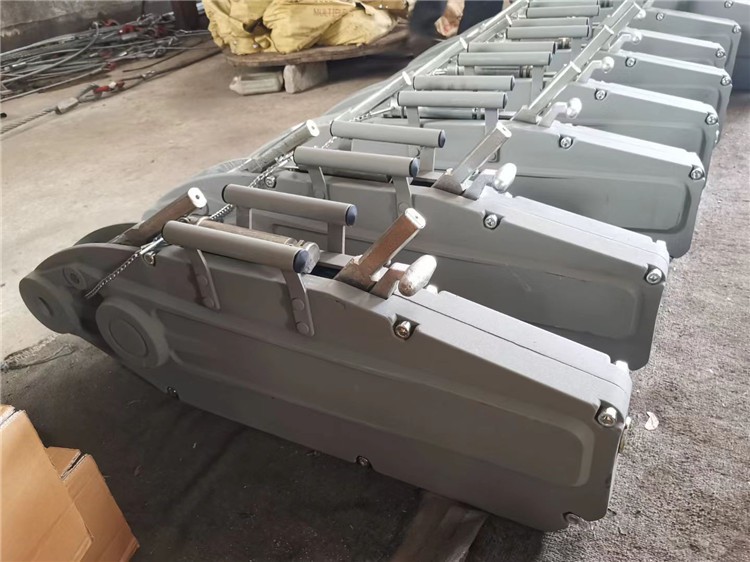

Portable hoist to lift and pull loads, for utilization in numerous configurations with long cable lengths.
Low weight-quick installation
No limitation in terms of cable length
Manageable, light-weight, robust, powerful
Increase load capacity with deflection sheaves
Overload protection
Precise load placement within millimeters
Feature
Universal
It is a hoist, winch, tensioner, binder, ratchet – and much more
01
Portable
It has the lowest weight-to-capacity ratio of any hoist or winch with comparable capacities
02
Unique
Its unique wire rope gripping system provides unlimited pulling length or lifting height and pinpoint accuracy in positioning any work load
03
Unmatched safety
It is simply designed and ruggedly constructed with the finest alloy heat-treated steel. The load is automatically held securely, with a large overload margin of safety
04
Indispensable
For all construction and maintenance jobs. It is used daily by millions of people all over the world
05
Use And Characteristic
Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M.
All hoists are supplied complete with 20-meter wire rope and an extendable operating lever.

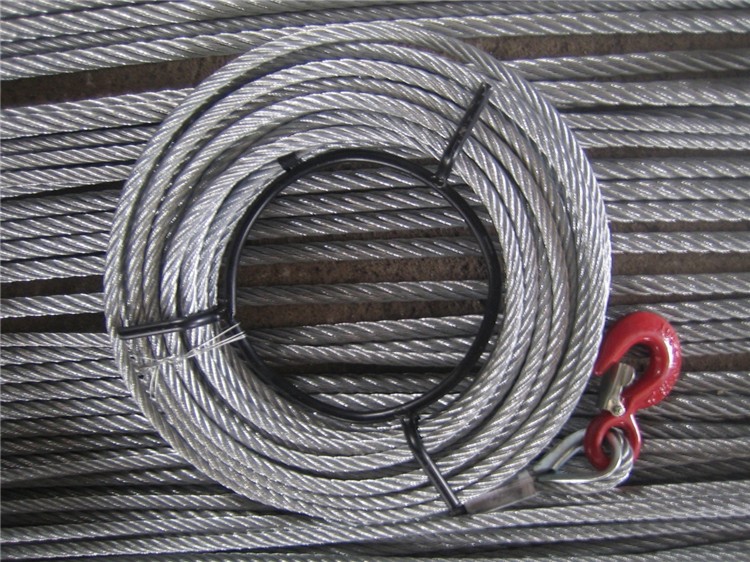

Wire rope is tapered on one end and fitted with a hook and safety catch at the other end.
The hoist has low maintenance requirements and is easy to service.
Overload protection ensures high personal safety when in operation.
Specially built-in shear pins can be replaced without removing the load.
TECHNICAL PARAMETERS | ||||
MODEL | JHSS08 | JHSS16 | JHSS32 | JHSS54 |
Lifting Capacity(kg) | 800 | 1600 | 3200 | 5400 |
Pulling Capacity(kg) | 1300 | 2800 | 6000 | 10125 |
Tested to (kg) | 1500 | 3000 | 6000 | 10125 |
Steel Wire Rope Dia(mm) | IWRC8.3 | IWRC11 | IWRC16 | IWRC20 |
Wire rope safety factor load capacity(kg) | 5WLL | 5WLL | 5WLL | 5WLL |
Breaking strength of wire rope(kg) | 5430 | 9680 | 17200 | 27000 |
Overall structure-breaking strength(kg) | 4WLL | 4WLL | 4WLL | 4WLL |
Transmission speed rate per minute (m) | 3 | 3 | 3 | 3 |
NetWeight without wire rope (kg) | 6.4 | 12 | 23 | 28 |
Net Weight with wire rope (kg) | 15.4 | 28.5 | 51.5 | 99.6 |
