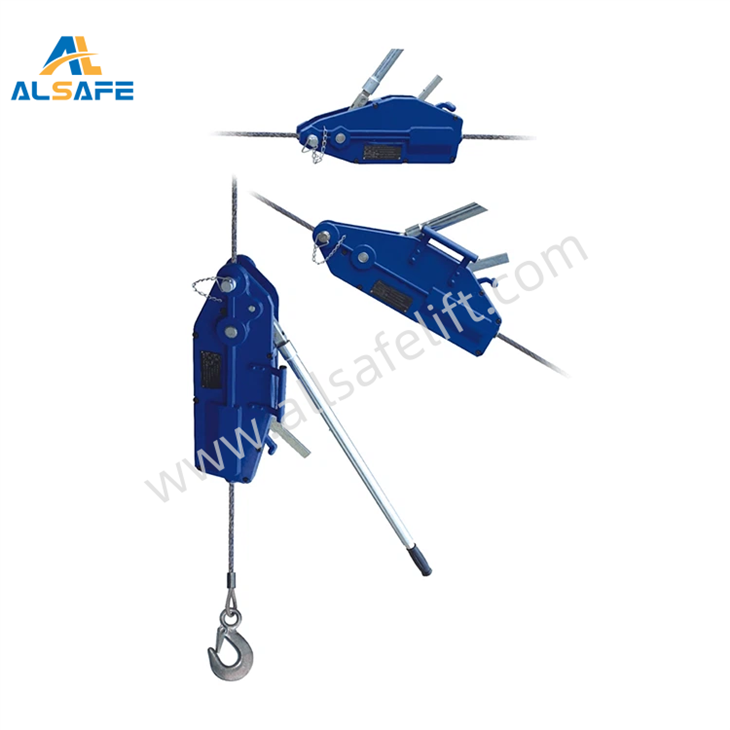

Wire Rope Pulling Winch
Prevent overload by built-in shearing pin
Stamped serial number for easy identification
High strength cast aluminium alloy body
Rope clamp system for easily disengaed with a lever allowing smooth installation of the wire rope
Experienced
Our company has many years of professional experience and is committed to providing high-quality, reliable products and excellent services to customers around the world.
Professional team
We have an experienced R&D team that continuously invests resources in technological innovation and product upgrades.
Advanced equipment
We have advanced production equipment and a strict quality control system to ensure stable and reliable product quality.
Professional services
We are customer-centric and provide personalized solutions and timely after-sales service.
Why choose us
Manual wire rope winch are one of our bestselling winch range designed for maximum flexibility and efficiency. The wire rope winch is light weight, wide range of applications and easy maintenance. Its made of forged Aluminum body making the product easy to handle. It is supplied with extendable handle to exercise maximum pulling force during operation. Tirfor / Winch are widely used to pull, lower and position heavy loads over long distances depending on the length of the rope. Winch are suitable for use in many configurations and are the ideal solution for use in professional applications these are operated by a single lever option. The products are proof load tested and supplied with a test certificate and user manual.
Features
Powerful pulling force
This winch adopts high-quality materials and advanced manufacturing technology, has strong pulling force, can easily handle the towing and lifting tasks of various heavy objects, and meets the needs of different working conditions.
01
Precise control
Equipped with a high-precision control system, the operator can accurately control the operating speed and pulling force of the winch to ensure the accuracy and safety of the operation and avoid accidents caused by improper operation.
02
Durable structure
Made of high-strength steel and anti-rust treatment, it can operate stably for a long time in harsh environments and reduce the frequency of equipment maintenance and replacement.
03
Efficient transmission system
The transmission system has been optimized and designed to have high transmission efficiency, which can quickly complete the towing operation of heavy objects and improve work efficiency.
04
Safe and reliable braking device
Equipped with a reliable braking device, it can brake quickly when the winch stops running to prevent heavy objects from sliding down and ensure the safety of operators and the surrounding environment.
05
Key Information
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC. This document clearly states the proof test at 1.5 times the rated capacity and the light load test of 2% of the rated capacity, which exceeds the requirements of the current applicable standard.
TECHNICAL PARAMETERS | ||||
MODEL | JHSS08 | JHSS16 | JHSS32 | JHSS54 |
Lifting Capacity(kg) | 800 | 1600 | 3200 | 5400 |
Pulling Capacity(kg) | 1300 | 2800 | 6000 | 10125 |
Tested to (kg) | 1500 | 3000 | 6000 | 10125 |
Steel Wire Rope Dia(mm) | IWRC8.3 | IWRC11 | IWRC16 | IWRC20 |
Wire rope safety factor load capacity(kg) | 5WLL | 5WLL | 5WLL | 5WLL |
Breaking strength of wire rope(kg) | 5430 | 9680 | 17200 | 27000 |
Overall structure breaking strength(kg) | 4WLL | 4WLL | 4WLL | 4WLL |
Transmission speed rate per min(m) | 3 | 3 | 3 | 3 |
NetWeight without wire rope (kg) | 6.4 | 12 | 23 | 28 |
Net Weight with wire rope (kg) | 15.4 | 28.5 | 51.5 | 99.6 |
