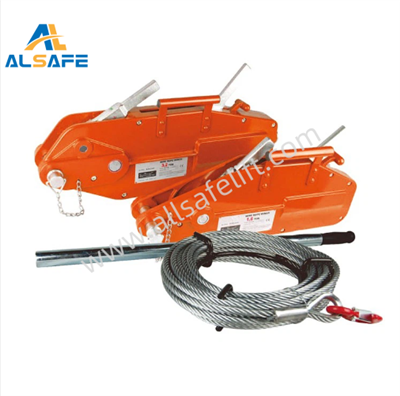

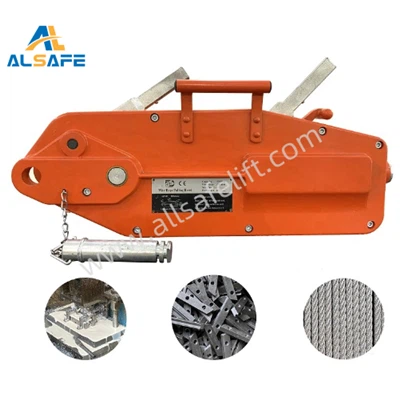

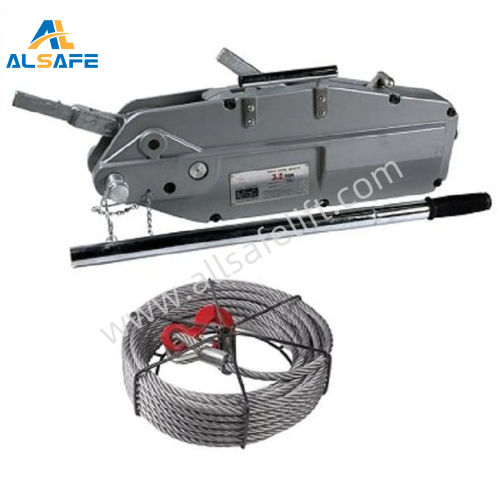

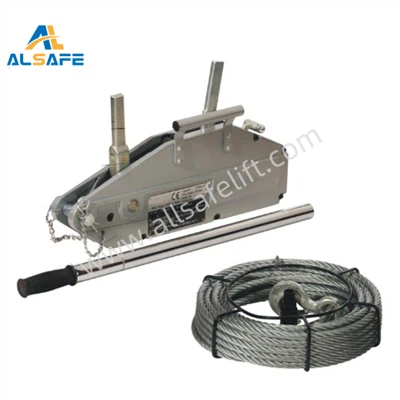

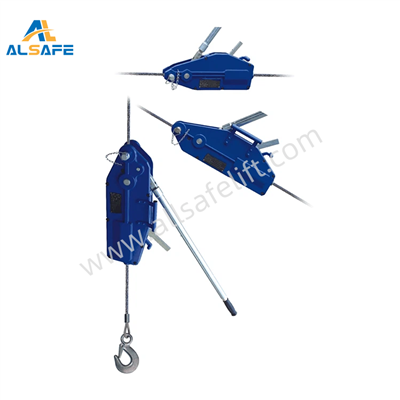

Wire Rope Lever Hoist
Company advantages
Rich experience
We have more than 20 years of production experience, which can guarantee the quality and durability of our products.
Advanced technology
Screw-swaged drum anchor terminals securely lock the cable within the drum while allowing it to fully extend.
Reliable quality
Products produced by the company are load tested to 125% of rated capacity and comply with ANSI standards B30.21, etc.
Product advantages
High strength and durability
The shell is made of high-strength aluminum alloy or special cast aluminum alloy, and is matched with a steel wire rope with high breaking tensile strength and wear resistance, which can withstand larger loads and long-term use.
Safe and reliable
Equipped with an overload protection handle, which will bend to warn the operator when overloaded; an interlocking pawl mechanism is used to ensure that the brake will not slip under any circumstances.
Flexible and convenient
Steel wire ropes of appropriate lengths can be configured according to actual needs; the product is relatively small in size and light in weight, making it easy to carry and operate.
Features
Reasonable structural design
Open frame structure, easy to inspect and clean, and potential problems can be discovered and dealt with in time.
Easy to operate
With a reversible handle, the operator can choose the best pulling position according to the actual situation.
High quality accessories
The 360° swivel hook is made from forged, heat-treated steel for durability and flexibility.
Maintenance
Daily cleaning
Clean dust, oil and other impurities on the surface of the product promptly after use to keep it clean and dry to prevent corrosion.
01
Regular inspection
Regularly check the wear of the wire rope. If there is any broken wire or severe wear, it should be replaced in time.
02
Lubrication and maintenance
According to the requirements of the product manual, lubricate each rotating part regularly to extend the service life.
03
Storage environment
When storing, it should be placed in a dry and well-ventilated place to avoid moisture, rust and other damage.
04
Specifications and models
TECHNICAL PARAMETERS | ||||
MODEL | JHSS08 | JHSS16 | JHSS32 | JHSS54 |
Lifting Capacity(kg) | 800 | 1600 | 3200 | 5400 |
Pulling Capacity(kg) | 1300 | 2800 | 6000 | 10125 |
Tested to (kg) | 1500 | 3000 | 6000 | 10125 |
Steel Wire Rope Dia(mm) | IWRC8.3 | IWRC11 | IWRC16 | IWRC20 |
Wire rope safety factor load capacity(kg) | 5WLL | 5WLL | 5WLL | 5WLL |
Breaking strength of wire rope(kg) | 5430 | 9680 | 17200 | 27000 |
Overall structure breaking strength(kg) | 4WLL | 4WLL | 4WLL | 4WLL |
Transmission speed rate per min(m) | 3 | 3 | 3 | 3 |
NetWeight without wire rope (kg) | 6.4 | 12 | 23 | 28 |
Net Weight with wire rope (kg) | 15.4 | 28.5 | 51.5 | 99.6 |
