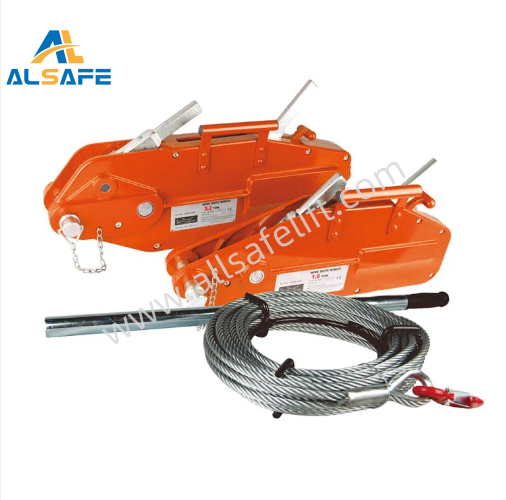

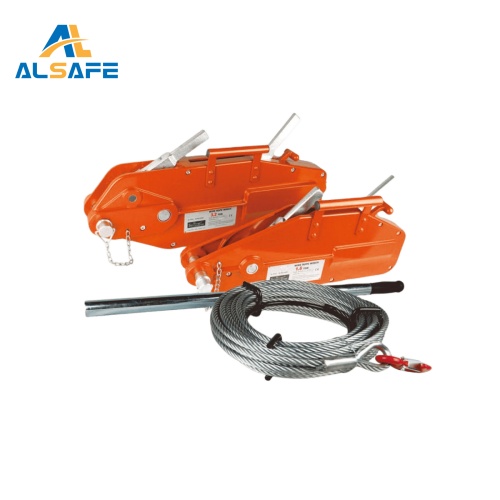

JHSS Wire Rope Pulling Hoist
* Laying of steel or concrete pipe
* Concrete pile laying
* Seat pile pulling
* Combine of fume tube
Product introduction
Adjustable handle
For easy operation.
Backward lever & Forward lever
Placed in tandem providing a slim design and assuring power transfer along the center.
Spare shear pins
Two spare shear pins located in the carrying handle.
Built-in shearing pin
Prevent overload. It functions at approx. 50% overload and the pins can be replaced without removing the load.
Anchor bolt
Offers numerous and versatile connection possibilities with load hooks, sling ropes and sling chains.
Stamped serial number
For easy identification
High strength cast aluminium alloy body
Light weight, simple to operate. Smooth contour design with large, flat bottom surface for increased stability in horizontal as well vertical working position.
Galvanized steel wire rope mounted on a reel
Every rope is operationally tested to 150% of the rated capacity and issued with an individual test certificate.
Rope clamp system
Easily disengaged with a lever allowing smooth installation of the wire rope.
Light, powerful, easy to move and to use, these machines make it possible to solve the numerous pulling and lifting problems in a practical and safe manner.
Product application
Construction
* Dam structures-pulling of frame
* Laying of steel or concrete pipe
* Concrete pile laying
* Seat pile pulling
* Combine of fume tube
01
Railway
* Pulling of rail
* Removal of van or wagon
* Laying of track
* Shunting and maintenance of rolling stock
02
Shipbuilding
* Manoeuvering of ships
* Working of locks
* Slowing of cargo
* Shipping of dinghies
03
Transport
* Positioning of boiler
* Machines
* Maintenance
* Loading of car
* Emergency
* Loading and unloading of bulky and heavy packages
04
Service advantages
industry-leading
Five years of electronic mechanical products precipitation,products mature and stable
01
High market share
Benchmarking machinery has great influence,covering 1,500 companies and 15 well-known enterprises across the country
02
High market share
Benchmarking machinery has great influence,covering 1,500 companies and 15 well-known enterprises across the country
03
Perfect product system
Electronic + technology solutions,complete product architecture system
04
Efficient after-sales service
To provide customers with a range of product services,24 hours online
05
Features
Measures small and light.
Equipped with two safety devices, and this guarantees safe operations.
Wire rope is drawn out straight, regardless of its length, and this distant operation.
Transmission speed 3 meters per minute, and this is the fastest among all hand-driven hauling devices.
Wire rope can be used at any working degrees.
Equipped with a safety hook, and this prevents wire rope from coming off while operation.
Most rationally planned, designed and durable.
TECHNICAL PARAMETERS | ||||
MODEL | JHSS08 | JHSS16 | JHSS32 | JHSS54 |
Lifting Capacity(kg) | 800 | 1600 | 3200 | 5400 |
Pulling Capacity(kg) | 1300 | 2800 | 6000 | 10125 |
Tested to (kg) | 1500 | 3000 | 6000 | 10125 |
Steel Wire Rope Dia(mm) | IWRC8.3 | IWRC11 | IWRC16 | IWRC20 |
Wire rope safety factor load capacity(kg) | 5WLL | 5WLL | 5WLL | 5WLL |
Breaking strength of wire rope(kg) | 5430 | 9680 | 17200 | 27000 |
Overall structure breaking strength(kg) | 4WLL | 4WLL | 4WLL | 4WLL |
Transmission speed rate per min(m) | 3 | 3 | 3 | 3 |
NetWeight without wire rope (kg) | 6.4 | 12 | 23 | 28 |
Net Weight with wire rope (kg) | 15.4 | 28.5 | 51.5 | 99.6 |
