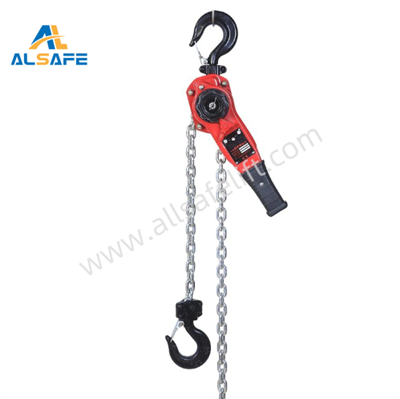

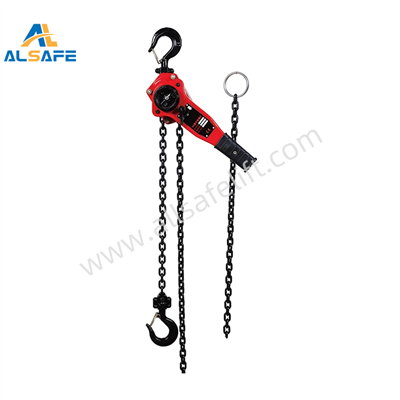

VL Type Lever Block
Lever hoist is universal, manual hoist for tensioning and lashing in any direction.
The ratchet lever hoist features compact design and robust, deep drawn, stamped steel construction
High quality materials ensure light weight without infringing reliability.
Asbestos free brake, holding load at any desired height.
Top & Bottom hooks are fitted with safety latches as standard.
The ratchet lever hoist features compact design and robust, deep drawn, stamped steel construction
High quality materials ensure light weight without infringing reliability.
Asbestos free brake, holding load at any desired height.
Top & Bottom hooks are fitted with safety latches as standard.
Send Inquiry
Product Introduction
TECHNICAL PARAMETERS | ||||||
MODEL | TLB-050 | TLB-075 | TLB-150 | TLB-300 | TLB-600 | TLB-900 |
Capacity(t) | 0.5 | 0.75 | 1.5 | 3.0 | 6.0 | 9.0 |
Standard Lift(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Proof Load(t) | 0.75 | 1.125 | 2.25 | 4.5 | 9.0 | 13.5 |
No. of Falls of Load Chain | 1 | 1 | 1 | 1 | 2 | 3 |
Load Chain(mm) | 5*15 | 6*18 | 8*24 | 10*30 | 10*30 | 10*30 |
Net Weight(kg) | 3.7 | 8.0 | 11.8 | 21 | 32 | 47 |
