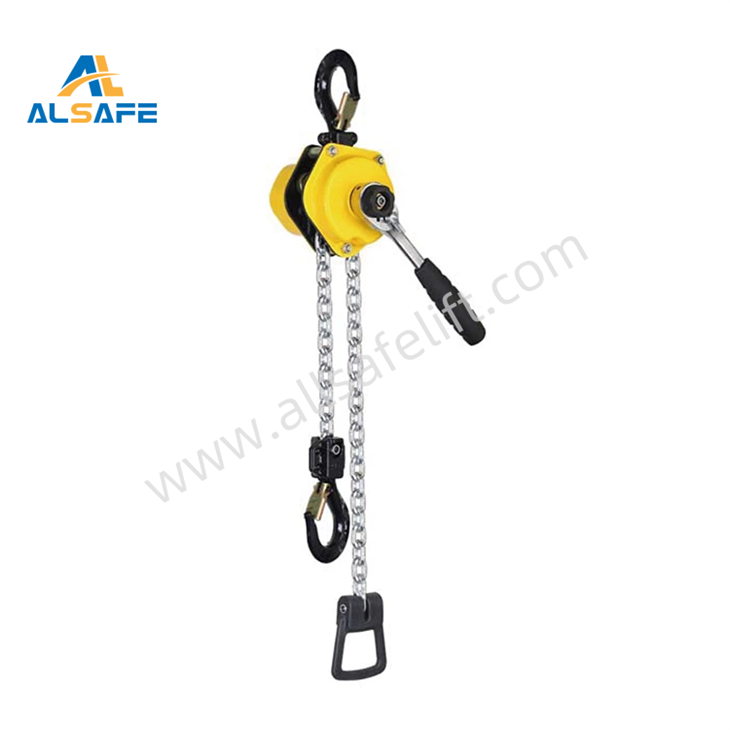

Mini Lever Hoist
Superior grade 100 load chain-chrome plated
Forged and heat treated load hooks with batch traceability and stretch indicators
Double pawls brake system
Asbestos free brake linings
Features
Efficient and multi-functional
HSH type lever crane is an efficient and multi-functional lifting tool, suitable for a variety of lifting occasions.
High-quality chain
Adopt advanced 100-grade load chain, chrome-plated to enhance corrosion resistance and durability.
Forged Heat Treated Hooks
The hooks are forged and heat treated with batch traceability and stretch indicators to ensure safe use.
Double pawl braking system
Provides more reliable braking performance.
Asbestos-free brake pads
Environmentally friendly and reliable.
2000 cycles of batch testing
Ensuring product stability and reliability.
Sealed ball bearings
Reduce wear and increase service life.
100% load test
Ensure that each product has undergone strict load testing before leaving the factory.
Application areas
Industrial Manufacturing
Used in factories for material handling and equipment installation.
01
Logistics warehousing
Used for loading, unloading and stacking of goods in warehouses.
02
Construction
Used on construction sites to lift and move building materials.
03
Repair and maintenance
Used for lifting heavy objects during equipment maintenance.
04
Rescue operations
Used to move heavy objects during emergency rescue.
05
Maintenance
Regular inspections
Regularly check the wear and functional status of the equipment.
01
Cleaning and maintenance
Clean the equipment regularly to prevent dust and debris from affecting operation.
02
Lubrication maintenance
Regularly lubricate parts that need lubrication.
03
Storage conditions
Store in a dry, well-ventilated environment, away from direct sunlight and moisture.
04
Specifications and models
TECHNICAL PARAMETERS | ||||||
MODEL | Capacity(t) | Standard Lift(m) | Test Load(t) | Chain Fall No. | Load Chain Dia(mm) | Net Weight(kg) |
HSH250 | 0.25 | 1.5 | 0.375 | 1 | 4 | 2.2 |
HSH500 | 0.50 | 1.5 | 0.75 | 1 | 4 | 3.2 |
HSH750 | 0.75 | 1.5 | 1.125 | 1 | 5 | 4.85 |
Hot Tags: Mini Lever Hoist, China Mini Lever Hoist suppliers, factory, Mini Lever Hoist, VL Type Lever Block, Ratchet Lever Hoist, Lever Hoist
Previous

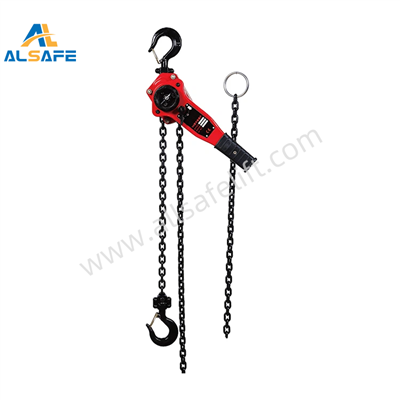

Ratchet Lever HoistYou Might Also Like
