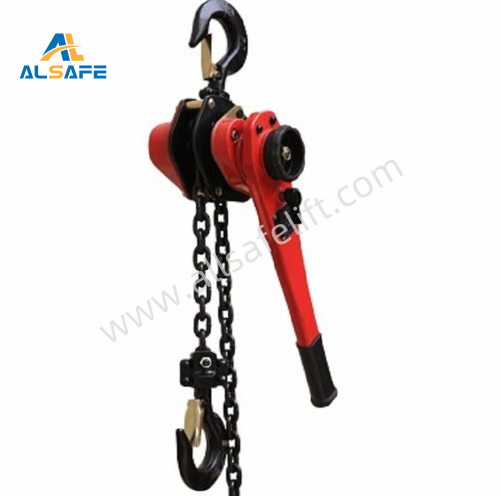

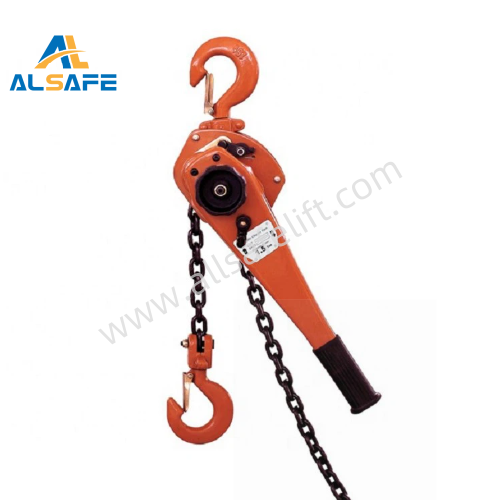

Lever Chain Hoist
2) Fully forged Hooks
3) With Double pawls
4) With G80 load chains of high quality
Product advantages
High-strength material
The chain has undergone a special heat treatment process, which greatly improves the wear resistance and fatigue resistance of the product, ensuring long-term stable use.
Precise control
The uniquely designed handle is labor-saving and precise in operation, enabling smooth lifting and lowering, reducing the labor intensity of the operator.
Safe and reliable
Equipped with multiple safety protection devices to effectively prevent accidents and ensure the safety of workers and the integrity of goods.
Strong adaptability
The product has a compact structure and small size, and can operate in a variety of complex environments.
Precautions for use
Overloading is strictly prohibited
Before use, be sure to confirm that the lifting weight does not exceed the rated load of the equipment.
01
Check the equipment
Before each use, carefully check whether the chain, hook, handle and other parts are damaged, deformed or severely worn.
02
Correct operation
During operation, keep the handle vertically pulled up and down, and ensure that surrounding people are at a safe distance.
03
Suitable environment
Avoid long-term use in harsh environments such as moisture, strong corrosion, high temperature, etc.
04
Maintenance
Regular cleaning
Regularly remove dust, oil and other impurities on the surface of the equipment to keep the appearance of the equipment tidy.
Lubrication treatment
Regularly add special lubricants to moving parts such as chains and gears to reduce wear and extend the service life of the equipment.
Check and tighten
Regularly check whether the bolts, nuts, etc. at each connection part are loose, and tighten them in time if they are loose.
Storage requirements
When the equipment is not used for a long time, it should be stored in a dry and ventilated environment.
FAQ
Q: Can the lifting speed of Lever Chain Hoist be adjusted?
A: For some models of products, the lifting speed can be fine-tuned by replacing sprockets of different specifications, but stepless speed changes cannot be achieved.
Q: Is it difficult to repair the equipment after it breaks down?
A: Our company provides customers with professional after-sales service. After the equipment fails, just contact our after-sales team and we will arrange professional technicians to repair it. General faults can be solved quickly.
Q: If the chain is worn, can it be replaced individually?
A: Yes, we provide individual chain replacement services to ensure that the equipment can be restored to normal use in time when some parts are damaged.
Specifications and models
TECHNICAL PARAMETERS | ||||||
MODEL | VL-050 | VL-075 | VL-150 | VL-300 | VL-600 | VL-900 |
Capacity(t) | 0.5 | 0.75 | 1.5 | 3.0 | 6.0 | 9.0 |
Standard Lift(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Proof Load(t) | 0.75 | 1.125 | 2.25 | 4.5 | 9.0 | 13.5 |
No. of Falls of Load Chain | 1 | 1 | 1 | 1 | 2 | 3 |
Load Chain(mm) | 5*15 | 6*18 | 8*24 | 10*30 | 10*30 | 10*30 |
Net Weight(kg) | 3.7 | 8.0 | 11.8 | 21 | 32 | 47 |
