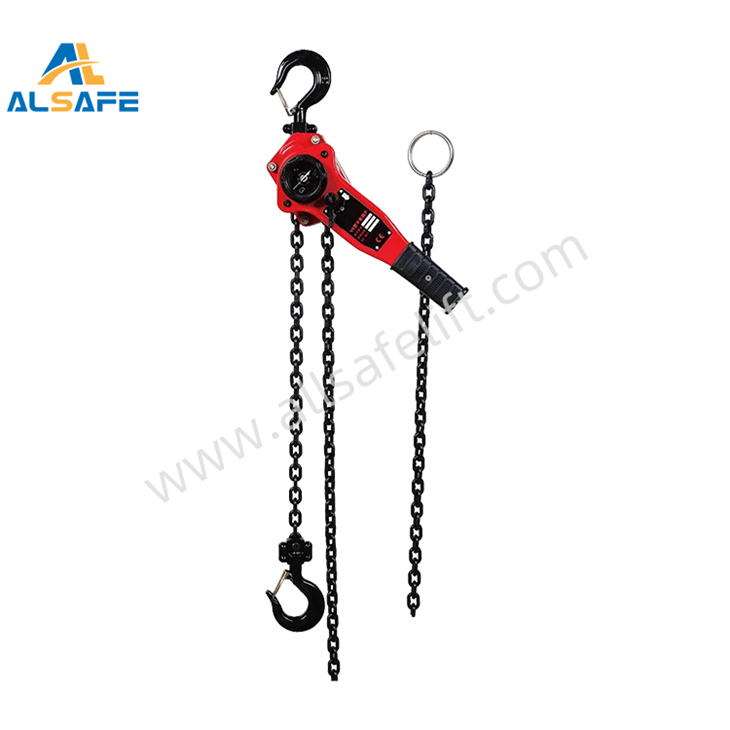

Ratchet Lever Hoist
Automatic double-pawl braking system
Chain guides provide smooth chain operation
Roller bearing supported load sheaves for avoiding abrasion
G80 Chain are made of special alloy steel that is exclusively
Product advantages
High efficiency
Human operation can realize the lifting and lowering of heavy objects, with high efficiency.
01
Safety
Designed with multiple safety mechanisms, such as overload protection and ratchet locking.
02
Durability
Usually made of high-strength materials, resistant to wear and tear, and suitable for a variety of harsh environments.
03
Portability:
Small size, light weight, easy to carry and move.
04
Versatility
Suitable for a variety of lifting situations, such as factories, warehouses, construction sites, etc.
05
Features
01.Compact structure
Compact design takes up little space.
02.Easy operation
The lifting and lowering of heavy objects is achieved through a simple lever principle.
03.Strong carrying capacity
Depending on the model, the carrying capacity ranges from hundreds of kilograms to several tons.
04.Simple maintenance
Routine maintenance and inspection are relatively simple, reducing maintenance costs.
Precautions for use
Inspect equipment
Check equipment for damage or wear before use.
01
Correct operation
Strictly follow the operation manual to avoid equipment damage or safety accidents caused by incorrect operation.
02
Do not overload
Do not exceed the rated load capacity of the equipment.
03
Environmental Adaptation
Avoid use under extreme temperature or humidity conditions.
04
Module title
Capacity from 0.5T to 9T, Minimum headroom required and very versatile in operation
Automatic double-pawl braking system
Chain guides provide smooth chain operation
Roller bearing supported load sheaves for avoiding abrasion
G80 Chain are made of special alloy steel that is exclusively
Drop forged kooks to ensure superior quallity and safety
The lever hoist static test is 4 times of capacity, and running test is 1.5 times of capacit one by one
The lever block is of high efficiency, fast lifting and light hand pull.
Surface finishing: Automotive painting.
Specifications and models
TECHNICAL PARAMETERS | ||||||
MODEL | Capacity(t) | Standard Lift(m) | Test Load(t) | Chain Fall No. | Load Chain Dia(mm) | Net Weight(kg) |
VA050 | 0.50 | 1.5 | 0.75 | 1 | 5 | 5.9 |
VA075 | 0.75 | 1.5 | 1.125 | 1 | 6.3 | 6.6 |
VA100 | 1.00 | 1.5 | 1.50 | 1 | 6.3 | 7 |
VA150 | 1.50 | 1.5 | 2.25 | 1 | 7.1 | 10.8 |
VA200 | 2.00 | 1.5 | 3.00 | 1 | 7.1 | 11.1 |
VA300 | 3.00 | 1.5 | 4.50 | 1 | 9.0 | 18.2 |
VA600 | 6.00 | 1.5 | 9.00 | 2 | 9.0 | 28.1 |
VA900 | 9.00 | 1.5 | 13.50 | 2 | 9.0 | 40 |
