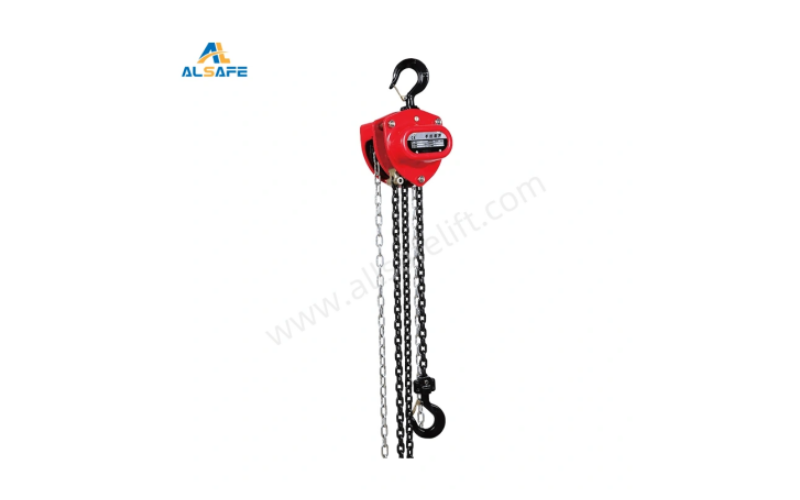

Chain Block with Overload Protection
Double enclosure to keep out rainwater and dust
Double pawl spring mechanism to further increase of sureness
Safe and reliable mechanical brake
Hook for easy work
why choose us
We are committed to becoming a professional supplier trusted by our customers.
why choose our products
The Chain Block with Overload Protection we producecombines the powerful power of a chain crane with the safetyfeatures of overload protection, and can complete variousheavy lifting tasks while ensuring safety.
This kind of crane is usually manually or electrically driven andequipped with strong chains and precision transmissionmechanisms.
Product introduction
EAR CASE AND HANDWHEEL COVERRESISTANT TOEXTERNAL SHOCKS
DOUBLE ENCLOSURETO KEEP OUTRAINWATER ANDDUST
DOUBLE PAWLSPRING MECHANISMTO FURTHERINCREASE OFSURENESS
SAFE AND RELIABLEMECHANICAL BRAKE

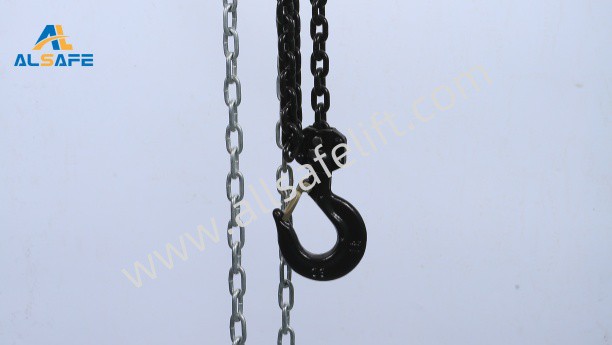

HOOK FOR EASYWORK
BEARING MECHANISMTO INCREASEMECHANICALEFFICIENCY
ULTRA STRONG LOADCHAIN
MEETINGEN13157
REQUIREMENT OF
Product Specifications
| TECHNICAL PARAMETERS | ||||||
MODEL | Capacity (t) | Standard Lift(m) | Test Load (t) | Chain Fall No. | Load Chain Dia(mm) | Net Weight(kg) |
HS-VD005 | 0.5 | 3 | 0.75 | 1 | 5.0 | 9.1 |
HS-VD010 | 1.0 | 3 | 1.5 | 1 | 6.0 | 12.0 |
HS-VD015 | 1.5 | 3 | 2.25 | 1 | 7.1 | 13.5 |
HSZ-VD020 | 2.0 | 3 | 3.00 | 1 | 8.0 | 21.6 |
HS-VD030 | 3.0 | 3 | 4.50 | 1 | 10.0 | 21.0 |
HS-VD050 | 5.0 | 3 | 7.50 | 2 | 9.0 | 37.5 |
HS-VD100 | 10.0 | 3 | 15.00 | 4 | 9.0 | 59.5 |
Product Features
OverloadProtectionFunction
When the liftingweight exceeds therated load of thehand chain hoist, theoverload protectiondevice will activateimmediately toprevent the liftingchain from continuingto rise, therebyprotecting the safetyof the equipment andoperators.
High Quality Materials And Manufacturing Process
The maincomponents of thechain hoist, such aschains, sprockets,hooks, etc.. are madeof high-strength alloysteel. After strict heattreatment andsurface treatment.they have thecharacteristics ofhigh strength, wearresistance, andcorrosion resistance.
Easy To Operate
The operation of thehand chain hoist isvery simple. Just pulthe hand chain to liftand lower heavyobjects.Equipped with anti-slip handles andcomfortable hand-operated chains,operation is easierand less labor-intensive.
A Variety Of Specifications And Models Are Available
According to differentlifting needs, thisproduct is available ina variety ofspecifications andmodels, with liftingcapacities rangingfrom hundreds ofkilograms to dozensof tons.lt can meetthe lifting operationrequirements ofdifferent industriesand fields.
Competitive advantage
The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.
Before using thehand chain hoist.you mustcarefully checkwhether all partsof the equipmentare intact,especially thechain, hook,overloadprotection device,etc
01
Lifting operationsmust be carriedout strictly inaccordance withthe rated load ofthe hand chainhoist, andoverloading is notallowed.
02
During operation,pull the handchain slowly andavoid pulling andreleasing itviolently to avoidequipmentdamage andsafety accidents.
03
During the liftingprocess, payclose attention tothe liftingconditions ofheavy objects. lfthere is anyabnormality, theoperation shouldbe stoppedimmediately forinspection andtreatment.
04
Perform regularmaintenance onthe chain hoist,clean the surfaceof the equipment.check the wear ofchains, hooksand othercomponents, andreplace damagedcomponents in atimely manner.
05
