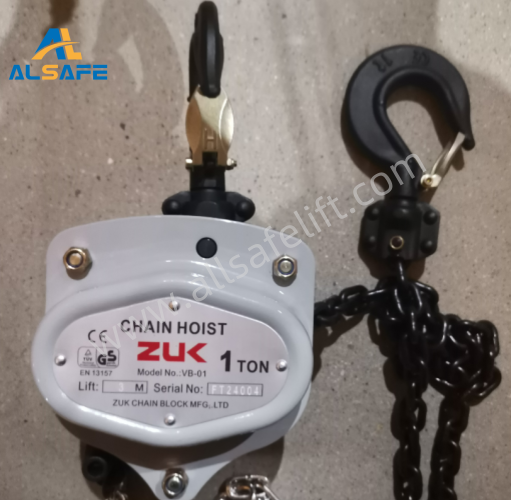

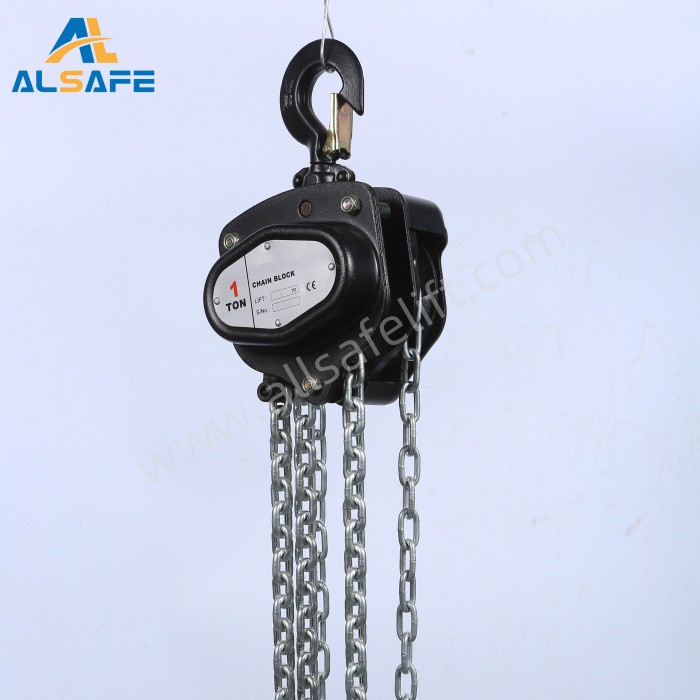

Manual Chain Block
Automatic double pawl breaking system.
Double cover protection.
Light weight robust construction.
Low effort to lift maximum load.
who choose us?
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC. This document clearly states the proof test at 1.5 times the rated capacity and the light load test of 2% of the rated capacity, which exceeds the requirements of the current applicable standard.
one-stop solution
professional team
high quality
Why choose our products
The Manual Chain Block manufactured by our company is a trustworthy and high-quality product.
reliability

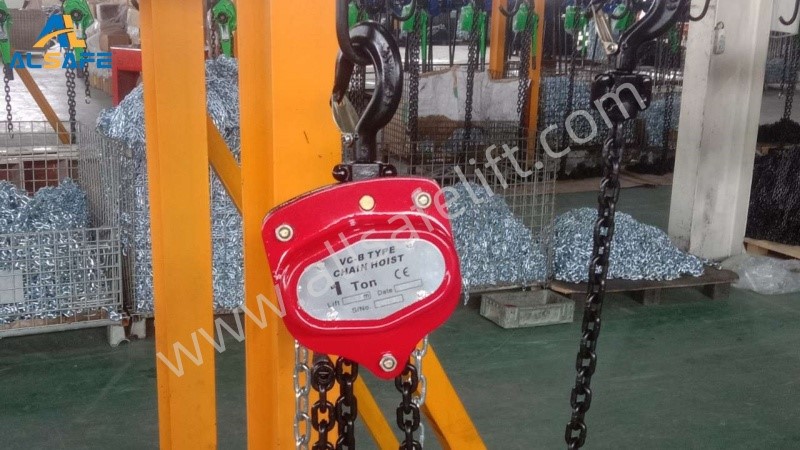

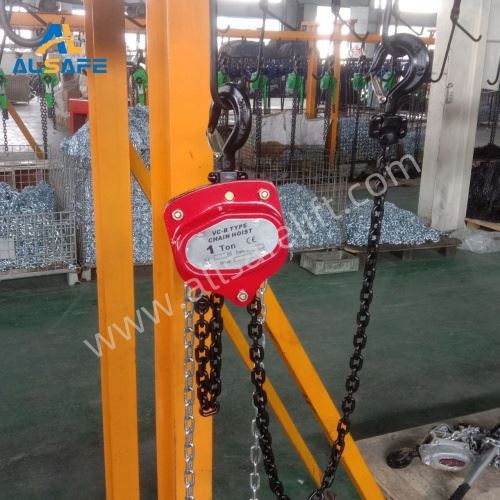

The Model VC-B manual chain hoist is designed for heavy-duty use and offers long-lasting reliability
high strength
The high-strength steel body and gearbox are durable and built to withstand the rigors of construction, machinery and maintenance rigging.
Bearing range
Our VC-Bs have lifting capacities from 500kg to 50,000kg. We use grade 80 alloy steel load chains. Helps avoid load chain slipping during use compared to traditional guide pulleys.
Making raw materials
Chain hoist hooks are made of heat-treated forged steel. The top hook is used to secure the hoist to the anchor point and the bottom hook is the load hook.
Durability
VC-B is produced using top-notch components to ensure maximum durability, rugged use and longer service life.
High cost performance
VC-B hoists are an economical and practical choice for efficient, trouble-free service.
Has many uses
The product is widely used for lifting loads and can also be used with hand push trolleys.
Qualification certificate
Products are validated load tested and provided with test certificates and user manuals.
Products Description

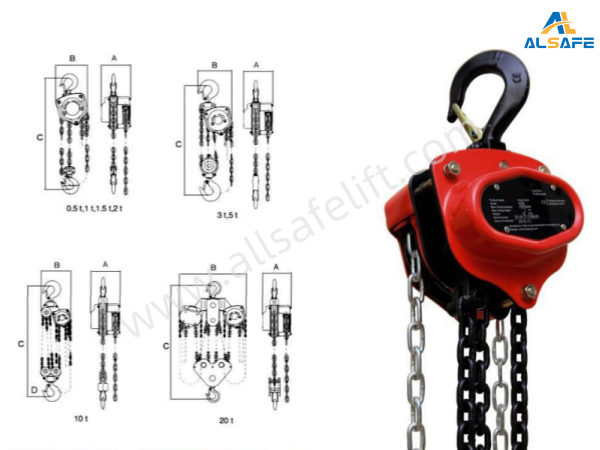

| Model | Capacity(T) | Standard lift(M) | Running test load(T) | No.of falls load chain | Load chain diameter(MM) | Dimenions(MM) | Net weight(kg) | |||
| A | B | C | D | |||||||
| VC-B 0.5T | 0.5 | 2.5 | 0.75 | 1 | 5 | 127 | 144 | 285 | 31 | 8.5 |
| VC-B 1T | 1 | 2.5 | 1.5 | 1 | 6.3 | 147 | 157 | 315 | 37 | 11.5 |
| VC-B 1.5T | 1.5 | 2.5 | 2.25 | 1 | 7.1 | 152 | 174 | 340 | 44 | 13.5 |
| VC-B 2T | 2 | 3 | 3 | 1 | 8 | 179 | 204 | 380 | 44 | 19.5 |
| VC-B 3T | 3 | 3 | 4.5 | 2 | 7.1 | 152 | 206 | 475 | 46 | 22 |
| VC-B 5T | 5 | 3 | 7.5 | 2 | 9 | 179 | 263 | 635 | 55 | 37.5 |
| VC-B 10T | 10 | 3 | 15 | 4 | 9 | 179 | 367 | 760 | 58 | 65 |
| VC-B 20T | 20 | 3 | 30 | 8 | 9 | 207 | 625 | 870 | 82 | 152 |
| VC-B 30T | 30 | 3 | 45 | 12 | 9 | 312 | 691 | 1380 | 110 | 235 |
| VC-B 50T | 50 | 3 | 75 | 20 | 9 | 496 | 958 | 2578 | 170 | 1092 |
Product Features
Capacity range from 0.5T to 50T.
The main components are using high quality alloy steel, implement strict size, weight inspection to ensure.The performance of each part to give full play.
Automatic double pawl breaking system.
Fine design, modern and elegant and beautiful appearance; accord with human body engineering, the light machine body and activities of small interface, adapt to the environment widely.
Double cover protection.
High strength enough material hook, higher safety coefficient; a new design is used in hook head to make sure the goods will not decoupling.
Light weight robust construction.
It is suppressed by fine steel, solid steel pressing in the light.
Easily lift maximum loads.
High strength enough material hook, higher safety coefficient; a new design is used in hook head to make sure the goods will not decoupling.

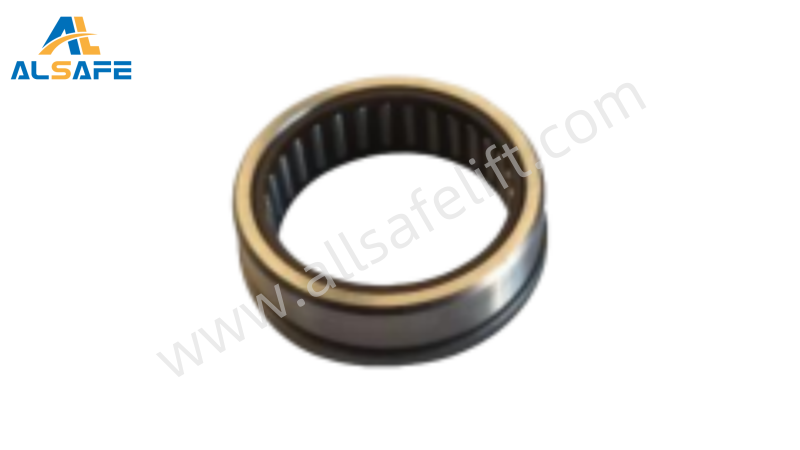

Sealed bearing.
Standard international gear steel is two times as wear-resisting degree as the ordinary chain hoist rotation is more stable and hand pulling force is lighter.
Extra thick asbestos free friction discs.
The main components are all made of high-quality alloy steel, and strict size and weight inspections are implemented to ensure that the performance of each component is fully exerted.

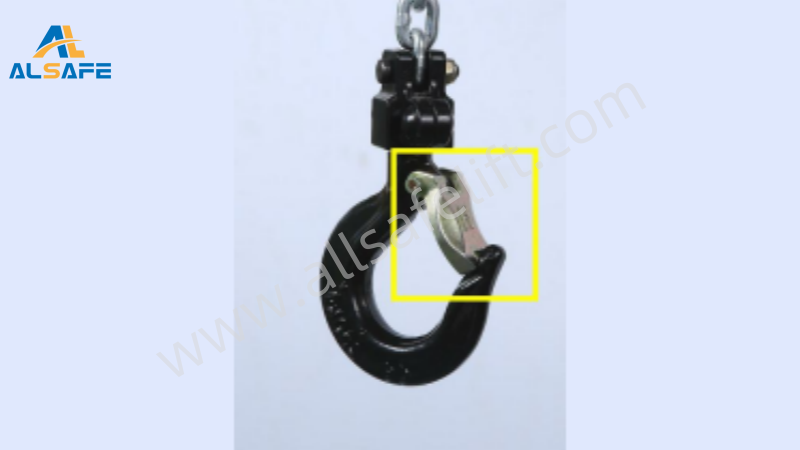

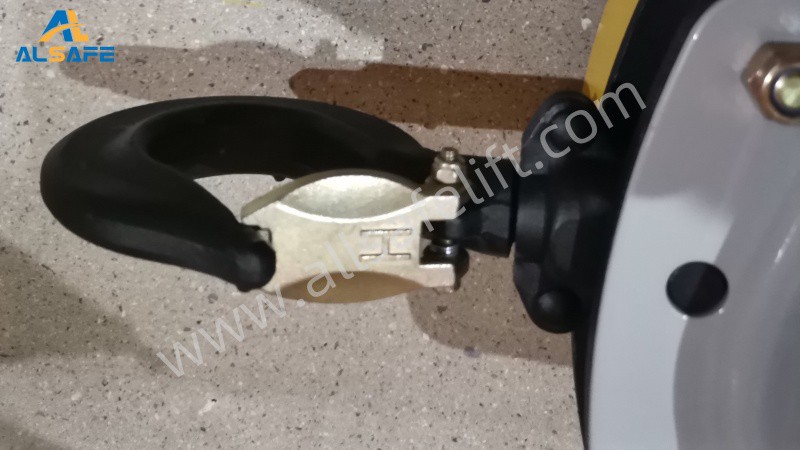

Fully forged hooks are fitted with safety latches as standard.
The hook is made of high strength and sufficient material, with a higher safety factor; the hook head adopts a new design to ensure that the goods will not be detached.
A galvanized bracelet is standard.
The chain has higher strength; it can adapt to sudden overweight working conditions; it changes that ordinary hand chain hoists can only pull vertically downward, and has a wider adaptability range.
The hoist is fitted with high grade 80 alloy load chain with T8 Mark.
The upper and lower hooks are equipped with limit switch parts to prevent the chain from falling out and ensure safety.
Introduction to application fields
Manual Chain Block is mainly used in situations where heavy objects need to be lifted, transported or installed manually.
Applications in industrial manufacturing
It is often used to install machinery and equipment, carry raw materials or finished products, and transfer materials on the production line. It is also suitable for repair and maintenance work, such as replacing components on a production line or performing equipment overhaul.
01
Application in building construction
It can be used for hoisting construction materials, such as steel bars, prefabricated concrete parts, etc. It is also commonly used to install and dismantle construction equipment such as scaffolding and formwork.
02
Application in logistics and warehousing
In warehouses and logistics centers, it can be used for loading, unloading, stacking and handling of goods. It is especially suitable for those situations where there is no power supply or where fast movement is required.
03
Other areas
Manual Chain Block can also be used for rescue and rescue work, such as material transportation and personnel rescue after earthquakes, floods and other natural disasters. In some special occasions, such as the hoisting and installation of stage equipment in theaters, stadiums and other places, Manual Chain Block also plays an important role.
04
