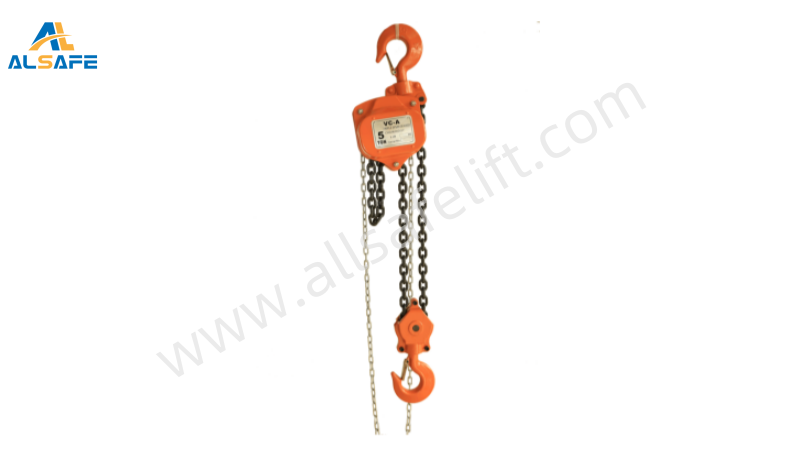

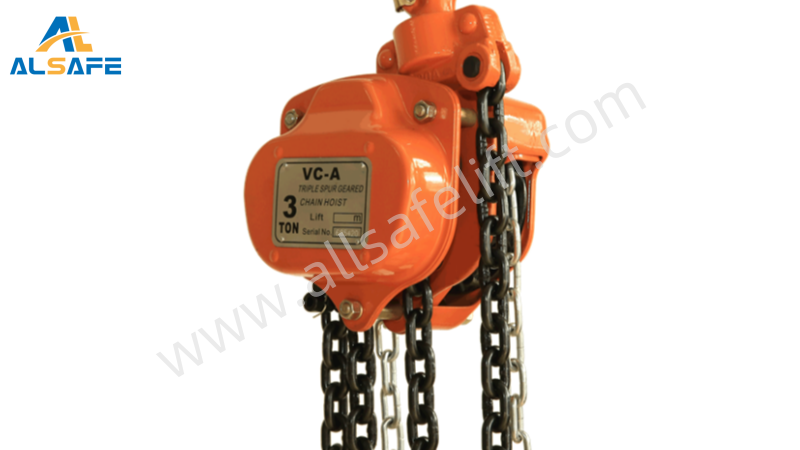

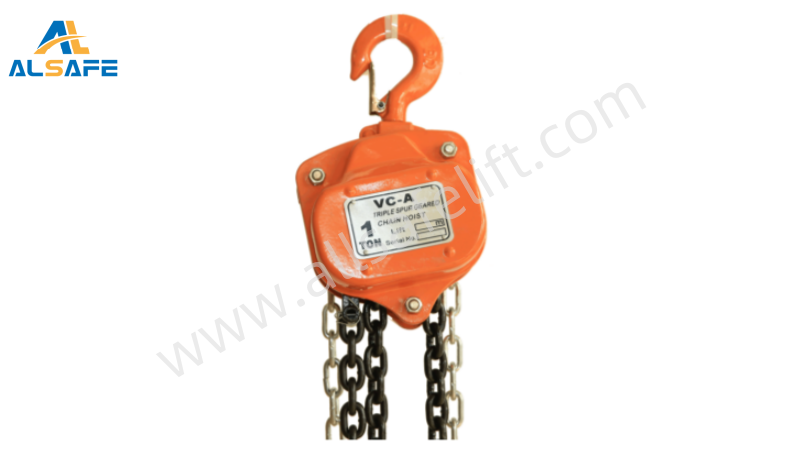

Hand Chain Hoist
Double pawls supports fail-safe brake mechanism

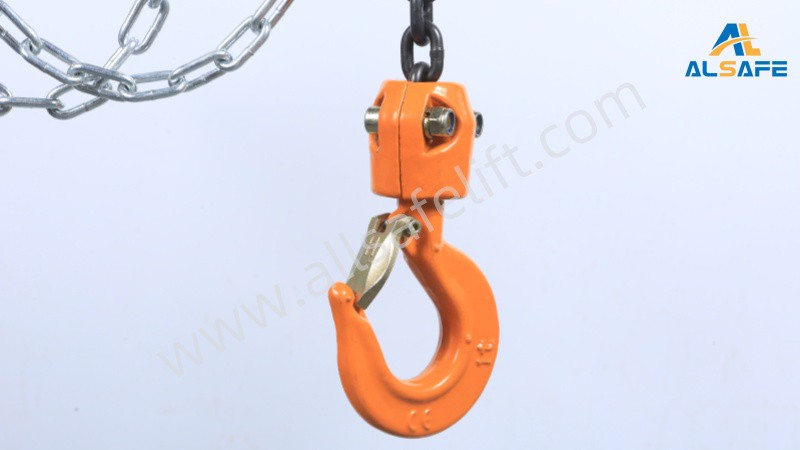

Bottom hook with thrust bearing
Tough framing
Rolled-edge hand wheel cover
The hand chain hoist is a common manual lifting machinery. Commonly used in factories, mines, construction sites, warehouses and other places.
It plays an important role in installing machinery, lifting goods or loading and unloading vehicles.
Optimized transmission mechanism
By optimizing the internal transmission mechanism, the hand chain hoist can improve lifting efficiency and reduce energy consumption.
High-quality materials
The main parts of the hand chain hoist are made of high-quality materials such as alloy steel, and the chains are made of high-strength lifting chains to ensure the stability and durability of the equipment.
5000+
Square Meters Built
800+
Enterprise Employees
100+
Cooperating Partner
20+
Years Experience
Product specifications and models
| TECHNICAL PARAMETERS | ||||||
MODEL | Capacity (t) | Standard Lift(m) | Test Load (t) | Chain Fall No. | Load Chain Dia(mm) | Net Weight(kg) |
VC-A005 | 0.5 | 3 | 0.75 | 1 | 5.0 | 9.1 |
VC-A010 | 1.0 | 3 | 1.5 | 1 | 6.3 | 12.0 |
VC-A015 | 1.5 | 3 | 2.25 | 1 | 7.1 | 13.5 |
VC-A020 | 2.0 | 3 | 3.00 | 1 | 8.0 | 21.6 |
VC-A020A | 2.0 | 3 | 3.00 | 2 | 6.3 | 20.4 |
VC-AV030 | 3.0 | 3 | 4.50 | 2 | 7.1 | 21.0 |
VC-A050 | 5.0 | 3 | 7.50 | 2 | 9.0 | 37.5 |
VC-A100 | 10.0 | 3 | 15.00 | 4 | 9.0 | 59.5 |
VC-A150 | 15.0 | 3 | 22.50 | 6 | 9.0 | 125.0 |
VC-A200 | 20.0 | 3 | 30.00 | 8 | 9.0 | 145.6 |

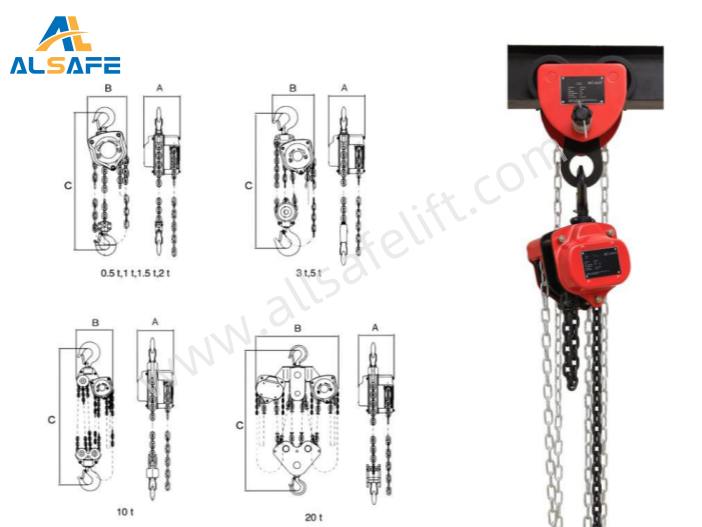

| Model | Capacity(T) | Standard Lift(m) | Running test load(T) | No.of falls load chain | Load chain diamter(MM) | Dimensions(MM) | Net weight(kg) | ||
| A | B | C | |||||||
| VC-A 0.5T | 0.5 | 2.5 | 0.75 | 1 | 5 | 129 | 136 | 270 | 8.5 |
| VC-A 1T | 1 | 2.5 | 1.5 | 1 | 6.3 | 151 | 145 | 317 | 11.5 |
| VC-A 1.5T | 1.5 | 2.5 | 2.25 | 1 | 7.1 | 150.5 | 165 | 399 | 13.5 |
| VC-A 2T | 2 | 3 | 3 | 1 | 8 | 161.5 | 187 | 414 | 19.5 |
| VC-A 3T | 3 | 3 | 4.5 | 2 | 7.1 | 150.5 | 185 | 465 | 22 |
| VC-A 5T | 5 | 3 | 7.5 | 2 | 9 | 161.5 | 241 | 636 | 37.5 |
| VC-A 10T | 10 | 3 | 15 | 4 | 9 | 207 | 398 | 798 | 65 |
| VC-A 20T | 20 | 3 | 30 | 8 | 9 | 215 | 650 | 890 | 152 |
| VC-A 30T | 30 | 3 | 45 | 12 | 9 | 350 | 680 | 1380 | 235 |
| VC-A 50T | 50 | 3 | 75 | 20 | 9 | 410 | 965 | 1950 | 1092 |
Hand Chain Hoist product features
Hand Chain Hoist is a manual hoisting machine that is easy to use and easy to carry.
Compact structure and easy to carry
Compact design: The chain hoist has a compact structure, small size and light weight, making it easy to carry and move in a variety of situations.
Components: Mainly include sprockets, hand zippers, transmission machinery, lifting chains, upper and lower hooks, etc. The transmission parts are mostly gear transmission, which is highly efficient and durable.
Excellent material, safe and reliable
Shell material: The shell is usually made of high-quality alloy steel material, which is strong and wear-resistant and can withstand external impacts and harsh environments.
Chain and hook: The chain is made of high-strength lifting chain, such as 800Mpa level, which has undergone heat treatment and anti-corrosion treatment to ensure low wear and long service life. The hook is made of alloy steel and is reasonably designed to ensure slow lifting to prevent overload. Braking system: Equipped with an automatic double pawl braking system, which can effectively brake under any circumstances, prevent heavy objects from falling, and improve operating safety.
Easy to operate and high efficiency
Working principle: By dragging the hand chain, the hand chain wheel rotates, driving the lifting sprocket and lifting chain to move, thereby smoothly lifting or lowering heavy objects. It adopts ratchet friction disc type one-way brake, which can brake by itself under load to ensure safe operation.
Labor-saving design: The design of the hand chain hoist makes the operation process labor-saving, the hand pulling force is small, and the work efficiency is improved.
Easy maintenance
Simple maintenance: The maintenance of the hand chain hoist is relatively simple. Regularly check the wear and tear of each component and replace damaged parts in time.
Anti-corrosion treatment: Some hand chain hoists adopt special anti-corrosion treatment technology to improve the corrosion resistance of the product and extend its service life.
Product Features
Choosing us is your most correct decision.
Gear
Standard international gear steel is two times as wear-resisting degree as the ordinary chain hoist rotation is more stable and hand pulling force is lighter.
Chain
Higher strength of the chain; adapting to suddenly overweight working condition; changing the ordinary chain hoist only vertical downward pull, fit to greater scope.
Hook
High strength enough material hook, higher safety coefficient; a new design is used in hook head to make sure the goods will not decoupling.
Limit Switch
Both upper and bottom hook have limit switch part prevent chain escaping to ensure security.
Cover shell
It is suppressed by fine steel, solid steel pressing in the light.The casing needs to tightly wrap the internal mechanical components to prevent dust, moisture, etc. from entering.
Body
Fine design, modern and elegant and beautiful appearance; accord with human body engineering, the light machine body and activities of small interface, adapt to the environment widely.
Spray
Advanced spray processing technology, inside and outside are painted; it will be like a new one however you use after a long time.
Components
The main components are using high quality alloy steel, implement strict size, weight inspection to ensure the performance of each part to give full play.
Product application

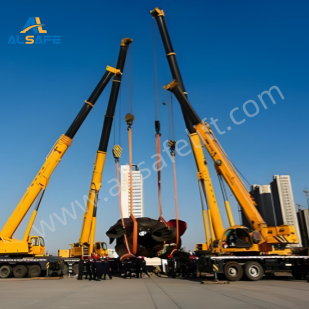

Construction site
On construction sites, chain hoists are used to hoist building materials, install steel structures, adjust the position of formwork, etc. They help workers perform work at height safely and efficiently.
Mines and Quarry
Mines and quarries have complex environments that require frequent lifting and transportation of heavy objects. Chain hoists are ideal for these occasions because of their portability and durability.

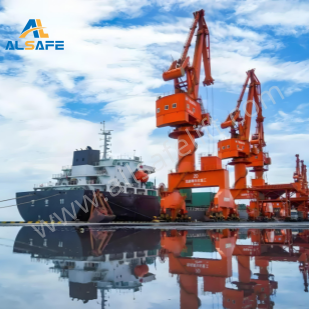

Ports and terminals
In ports and docks, chain hoists are used for cargo loading and unloading, ship repair and maintenance, etc. They can assist workers in completing various lifting operations quickly and safely.

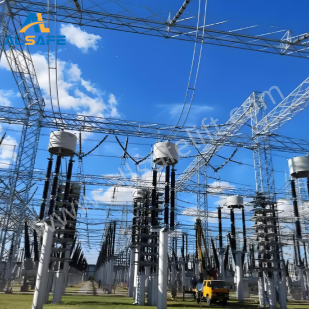

electricity:
In the power industry, chain hoists are used for installation of utility poles, laying of cables and maintenance of equipment. They help workers easily cope with operations at high altitudes and in complex environments.
