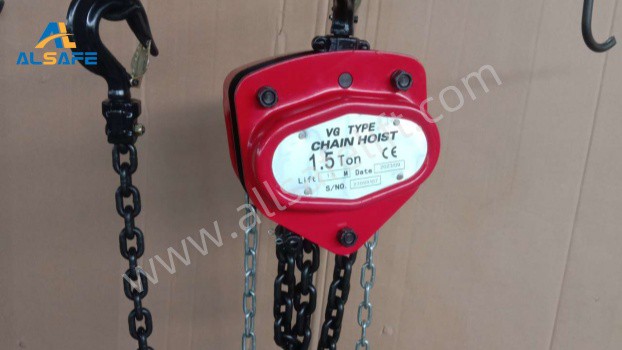

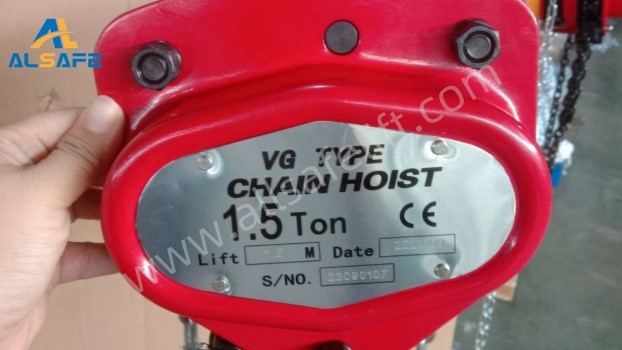

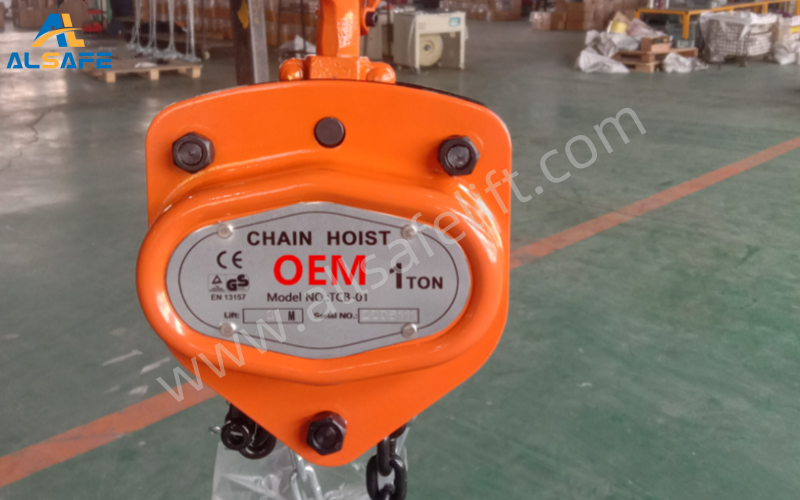

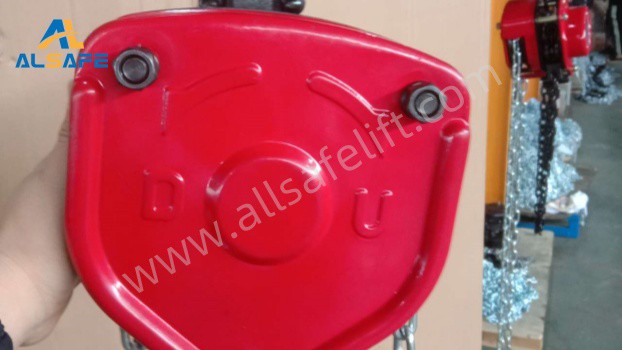

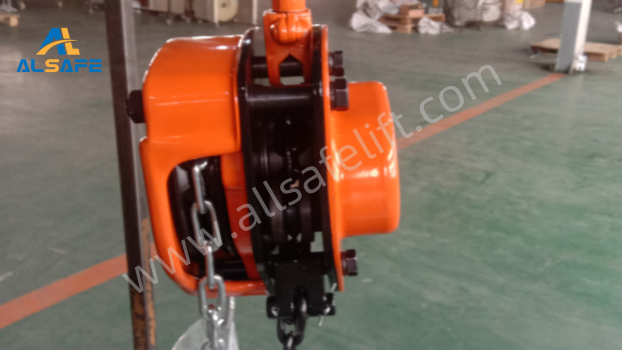

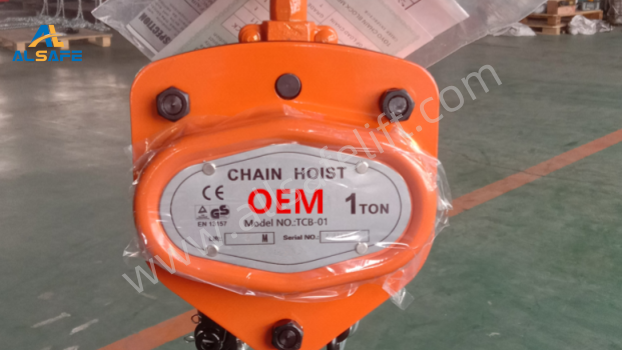

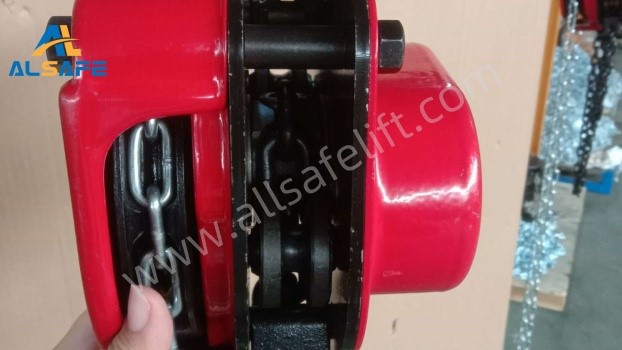

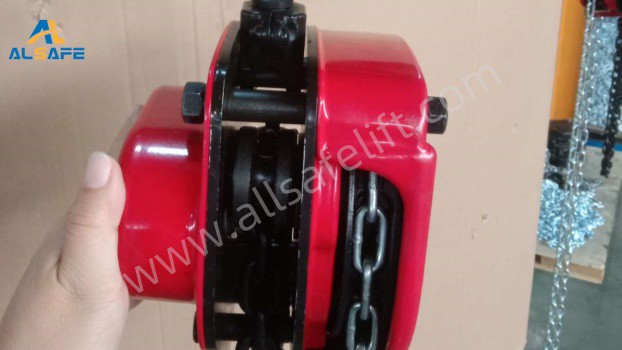

Chain Block with Bearing
Double pawl and double guide rollers enhance performance, safety and reliability .
Unique curling design this feature enables the hand chain to successufully feed directly into the wheel sprocket from many directions and angles .
why choose us
why choose our products
Chain Block with Bearing is a mechanical equipment used for lifting and carrying heavy objects.
It combines the flexibility of a chain crane with the efficiency of bearings, improving stability and efficiency during the lifting process through a built-in bearing system.
It is widely used in buildings, factories, warehouses and other places that require frequent lifting operations.
Product advantages
Powerful load capacity
Chain Block With Bearing can easily handle the lifting and handling of various heavy objects. Whether it is lifting construction materials on a construction site or moving heavy equipment in a factory workshop, it can complete the task reliably. For example, in some large construction sites, it can easily lift several tons of steel bars, cement prefabricated parts, etc.
Smooth lifting process
Due to the existence of the bearing, the chain runs more smoothly and reduces jamming and jumping. This not only ensures the stability of the lifting process, avoids the shaking and swaying of heavy objects, and improves work safety, but also can be more accurate for some operations that require high placement position accuracy, such as during equipment installation. Place the device at the specified location.
High-quality bearings
Chain Block With Bearing uses high-quality bearing materials and advanced manufacturing processes, which have good wear resistance and corrosion resistance. During long-term use, it can effectively resist wear and erosion from the external environment, maintain stable performance, and reduce equipment failures and maintenance costs caused by bearing damage.
Strong chain
The chain of the product is made of high-strength alloy steel material. After a special heat treatment process, it has high strength and toughness, and can withstand large pulling force and wear, ensuring reliability under long-term frequent use. and durability.
Labor-saving operation
The good lubrication and low friction characteristics of the bearing make it easier for the operator to pull the chain and reduce labor intensity. Even if lifting operations require a long time, operators will not feel excessive fatigue and improve work efficiency.
Flexible steering and positioning
This product can achieve multi-angle steering and precise positioning within a certain range. This is particularly important in working environments with limited space, such as in narrow workshops or sites with obstacles. The lifting direction and position can be flexibly adjusted to complete the task quickly and conveniently.
Overload protection
Some products are equipped with overload protection devices. When the lifting weight exceeds the rated load, they will automatically stop working to prevent chain breakage, equipment damage and even safety accidents caused by overload. This provides important protection for operators and equipment. safety guarantee.
Reliable braking system
It has an efficient braking system that can reliably stop and lock heavy objects at any time during the lifting process, ensuring that heavy objects will not accidentally fall in unexpected situations (such as power outages, equipment failures, etc.), further enhancing the Safety during use.
product specifications
| TECHNICAL PARAMETE | ||||||
MODEL | Capacity(t) | Standard Lift(m) | Test Load (t) | Chain Fall No. | Load Chain Dia(mm) | Net Weight(kg) |
TCB005 | 0.5 | 3 | 0.75 | 1 | 6 | 8.1 |
TCB010 | 1.0 | 3 | 1.50 | 1 | 6 | 11.2 |
TCB015 | 1.5 | 3 | 2.25 | 1 | 8 | 15.3 |
TCB020 | 2.0 | 3 | 3.00 | 1 | 8 | 17.1 |
TCB030 | 3.0 | 3 | 4.50 | 2 | 8 | 18.0 |
TCB050 | 5.0 | 3 | 7.50 | 2 | 10 | 21.7 |
TCB100 | 10.0 | 3 | 12.50 | 4 | 10 | 65.2 |
Product application industry
Chain Block with Bearing comes in a variety of models and is widely used in different industries.
Building construction
Used for hoisting building materials, prefabricated components, etc.
Factory Production
Lifting and handling heavy components on the production line.
Warehouse logistics
Hoisting and moving goods in the warehouse to improve warehousing efficiency.
Shipbuilding and repair
Lifting large components during shipbuilding and repair.
Precautions for use
Before use
Check whether all parts of the Chain Block with Bearing are intact, especially the chain, bearings and locking device.
During the hoisting process
Make sure that the load-bearing capacity of the Chain Block with Bearing does not exceed its rated load-bearing capacity.
During operation
Operators should be familiar with the use methods and safe operating procedures of Chain Block with Bearing to ensure the safety of hoisting operations.
Regular inspection
Perform regular maintenance and upkeep on the Chain Block with Bearing to extend its service life and maintain its good performance.
