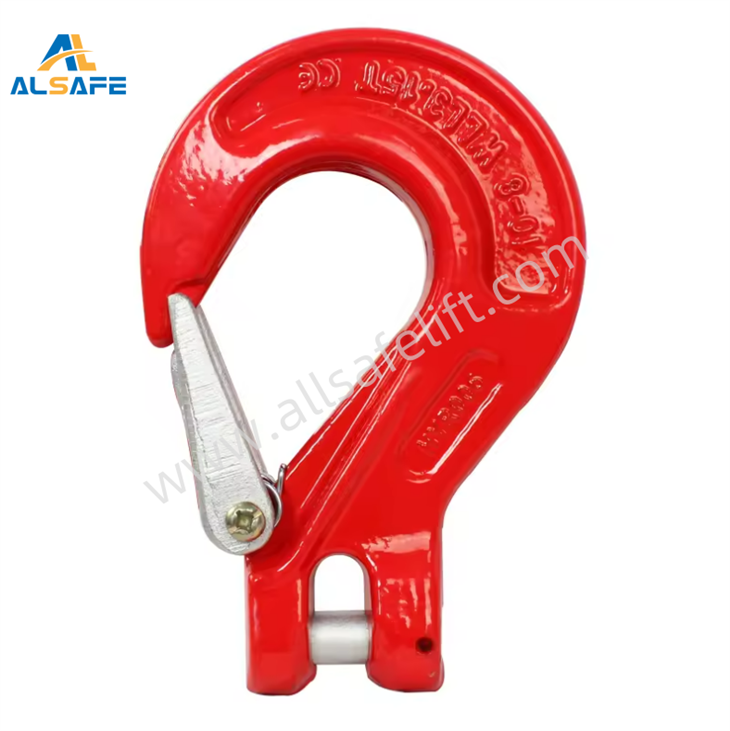

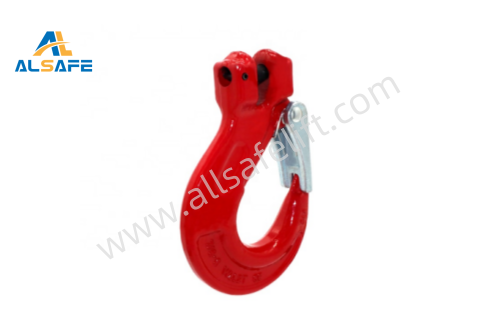

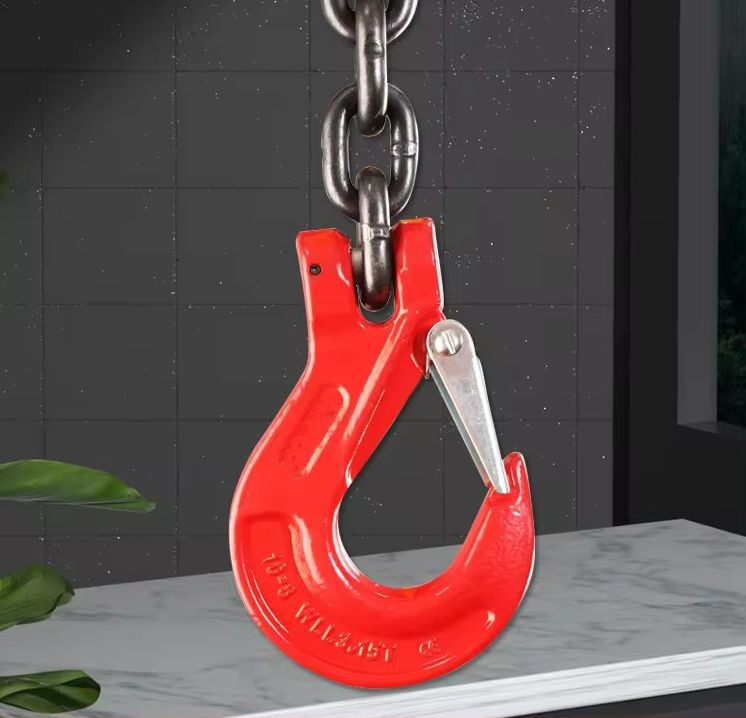

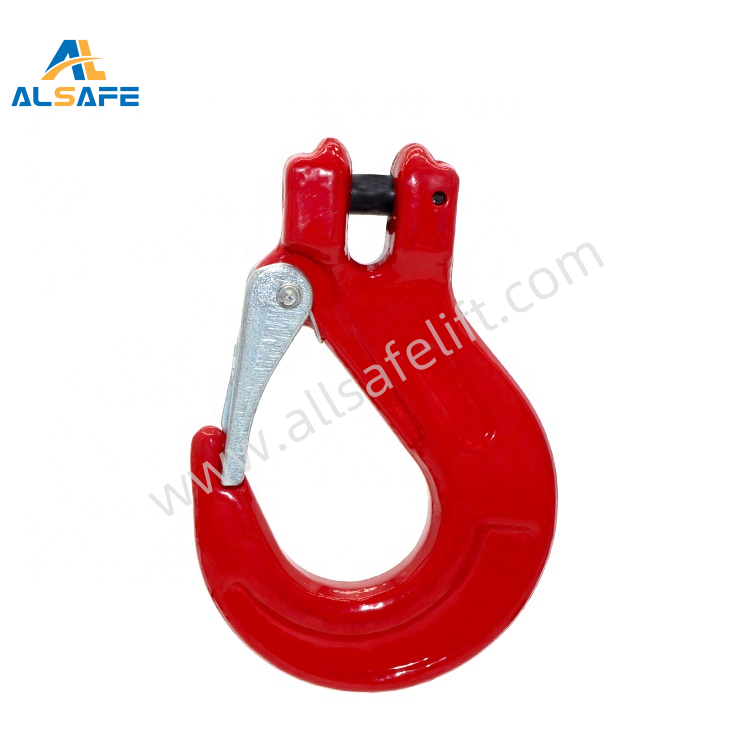

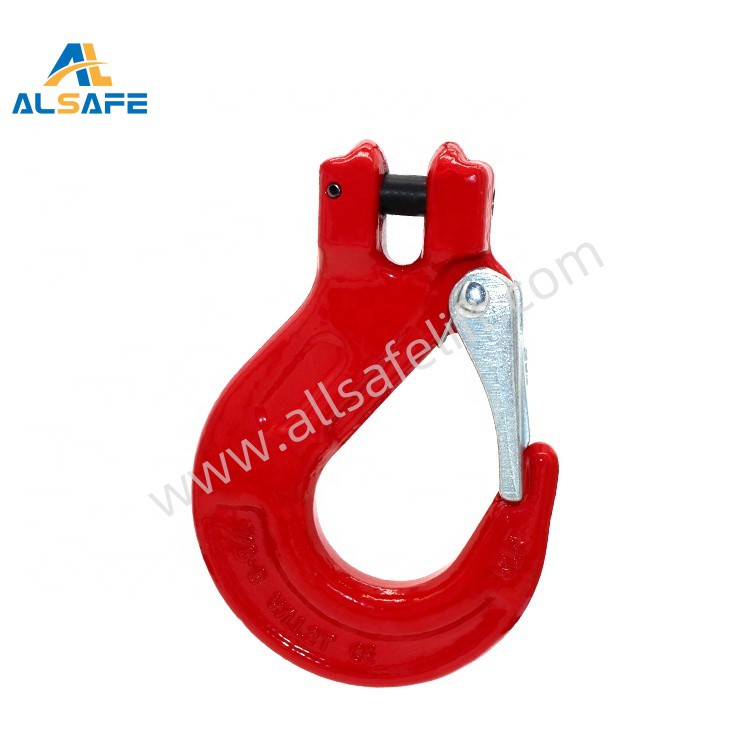

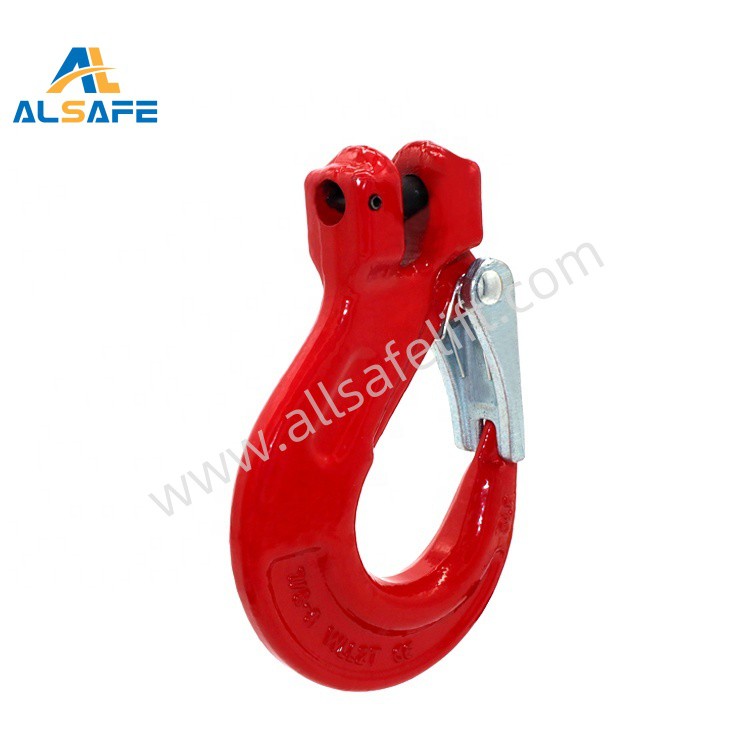

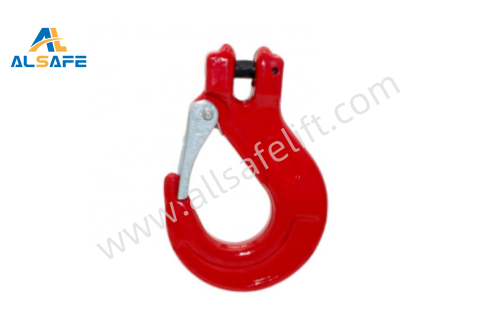

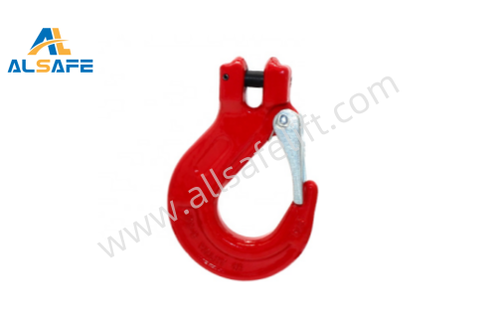

Clevis Hook With Safety Latch
Our products are worthy of your choice
Clevis Hook With Safety Latch is a key connector specially designed for lifting, hoisting and material handling operations. It is widely used in industry, construction, shipping, logistics and other fields. With its reliable design and practical functions, it ensures the efficiency of the lifting process. And safe.
Product advantages
Excellent safety
Excellent safety: The built-in safety latch is the core highlight, which effectively prevents accidental decoupling of slings and spreaders. Even under vibration and shaking in complex working conditions, it can firmly lock the lifted objects, greatly reducing the risk of accidents.
High strength and durability
It is forged or rolled from high-quality alloy steel and undergoes precision heat treatment. It has excellent tensile, bending and impact resistance, can withstand high load stress, and is not easily deformed and damaged after long-term and frequent use.
Strong adaptability
The design complies with general lifting specifications and is compatible with various specifications of chains, steel wire ropes, and synthetic fiber slings. It can be flexibly integrated into different lifting equipment systems, such as cranes, hoists, winches, etc.
Features
Exquisite structure
Sheep-shaped curved design, moderate opening for hanging goods, ensuring load-bearing while optimizing operation convenience; safety latches are mostly spring-assisted, manual opening and closing styles, opening and closing smoothly, locking firmly, and operating effortlessly.
Clear markings
The surface of the hook is clearly laser-engraved or cast with key markings such as rated lifting capacity, model, production batch, etc., which helps to quickly identify parameters, make compliant selections, and avoid dangers caused by overloading.
Excellent anti-corrosion
There are protective treatments such as galvanizing, chrome plating, and powder coating to resist moisture, acid, alkali, and salt spray corrosion. It maintains appearance and performance in harsh environments such as outdoors and chemical workshops, and prevents corrosion to extend the service life.

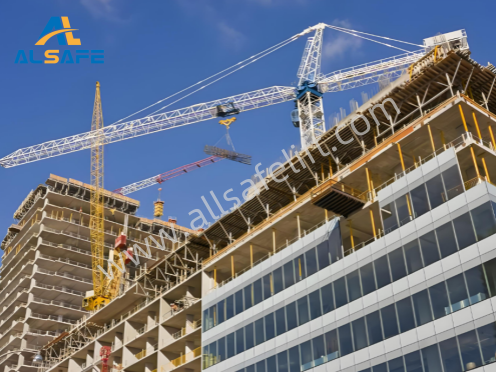

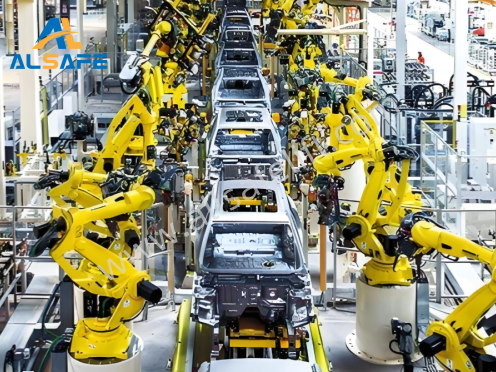

Application areas
Product introduction
Choose high strength alloy steel material , after high temperature forging, heat treatment process to improve material density, increase tensile strength , make the product safer.
The manufacturing test pull is 2.5 times ,the rated load 20000 cyclic fatigue tests were sampled at 1.5times the rated load.
The surface adopts electrostatic spraying process , no white rust in 480 hours and no red rust in 800 hours of salt spray test.
Forged super alloy steel - Quenched and Tempered.

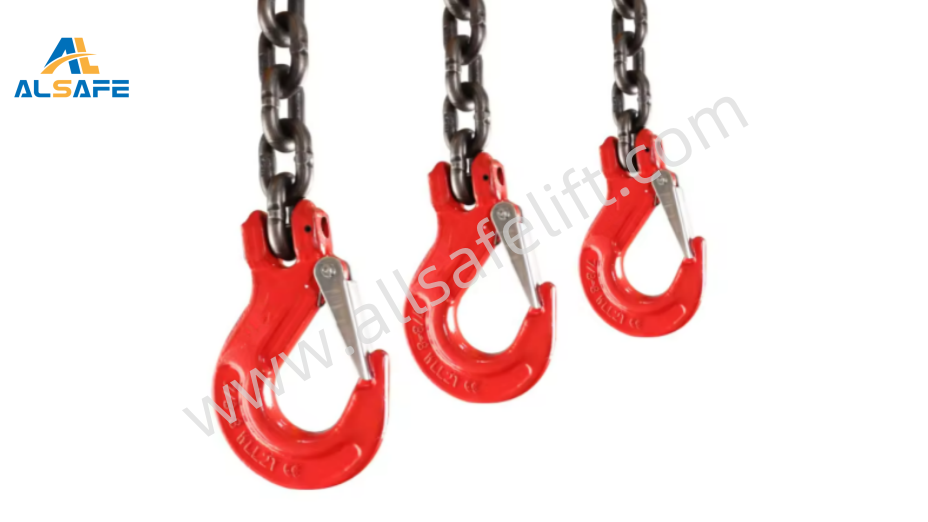

Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Surface finish: Power plastified.
100% Magnaflux Crack Detection.
Color: Yellow or Red RAL code: RAL1003 or RAL3020.

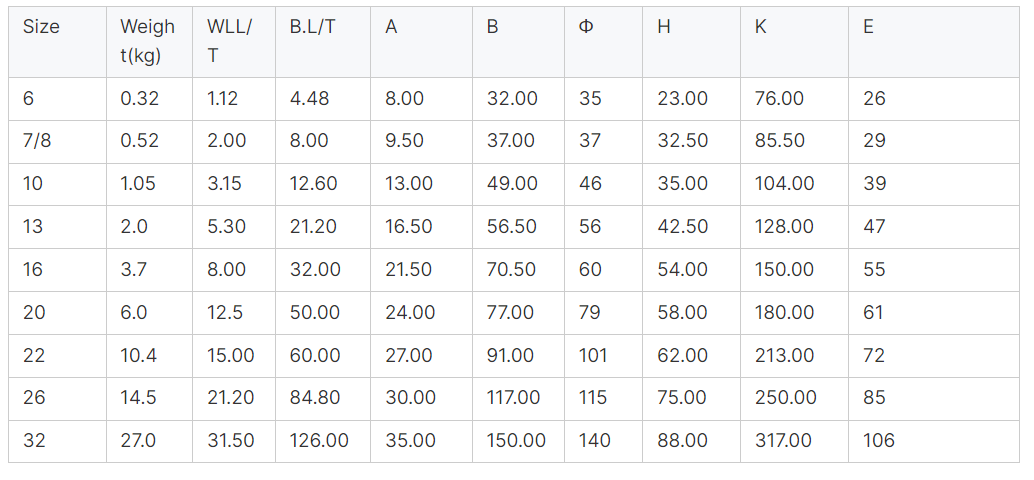

Specifications and models
