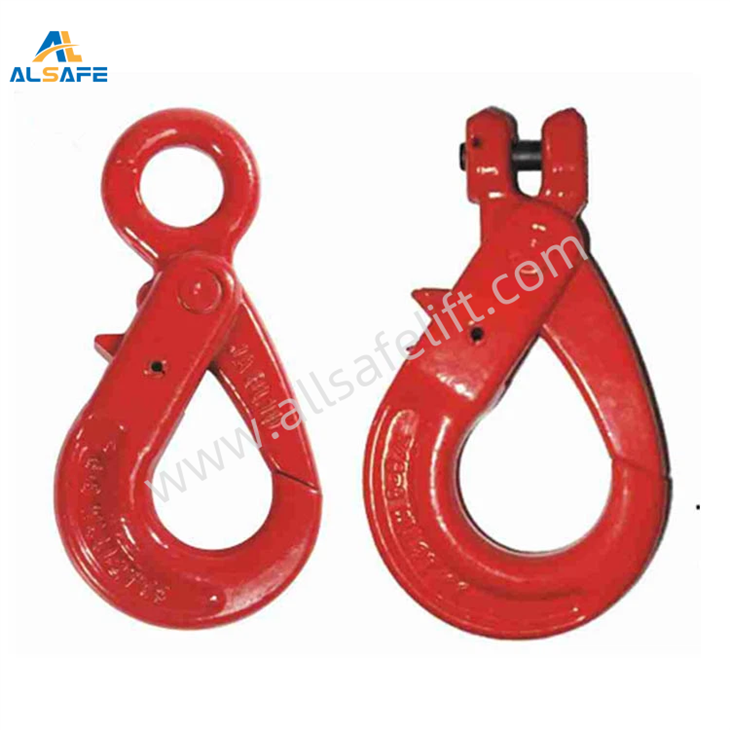

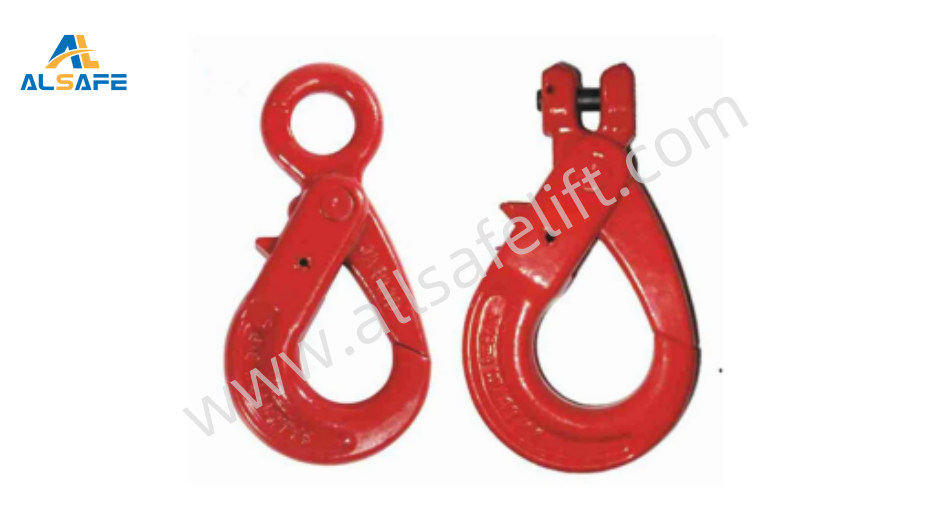

G80 Lifting Hook
100% tested at 2.5times Working Load Limit
100% magnaflux crack detection
Breakage test for each batch
G80 Lifting Hook: Excellent lifting solution, your reliable working partner
In the field of industrial lifting, a lifting hook with excellent performance, safety and reliability is crucial, and our G80 Lifting Hook was born for this purpose. With many outstanding advantages, it has become the first choice in many industries.
G80 EYE SELF-LOCKING HOOK | |||||
Item No. | Size (mm) | WLL(t) | B.L(t) | Weight(kg) | Picture |
FTR-006 | 6 | 1.12 | 4.48 | 0.50 |
|
FTR-007 | 7/8 | 2 | 8 | 0.86 | |
FTR-010 | 10 | 3.15 | 12.6 | 1.52 | |
FTR-013 | 13 | 5.3 | 21.2 | 3.15 | |
FTR-016 | 16 | 8 | 32 | 6.10 | |
FTR-020 | 20 | 12.5 | 50 | 8.10 | |
FTR-022 | 22 | 15 | 60 | 12.60 | |
FTR-026 | 26 | 21.2 | 84.8 | 21.90 | |
FTR-032 | 32 | 31.5 | 126 | 44.4 | |
G80 CLEVIS SELF-LOCKING HOOK | |||||
Item No. | Size (mm) | WLL(t) | B.L(t) | Weight(kg) | Picture |
FTR-106 | 6 | 1.12 | 4.48 | 0.55 |
|
FTR-107 | 7/8 | 2 | 8 | 0.95 | |
FTR-110 | 10 | 3.15 | 12.6 | 1.55 | |
FTR-113 | 13 | 5.3 | 21.2 | 3.30 | |
FTR-116 | 16 | 8 | 32 | 6.25 | |
FTR-120 | 20 | 12.5 | 50 | 8.55 | |
FTR-122 | 22 | 15 | 60 | 11.50 | |
FTR-126 | 26 | 21.2 | 84.8 | 18.95 | |
FTR-132 | 32 | 31.5 | 126 | 49.20 | |
