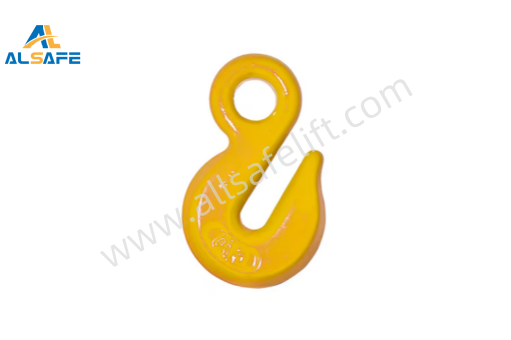

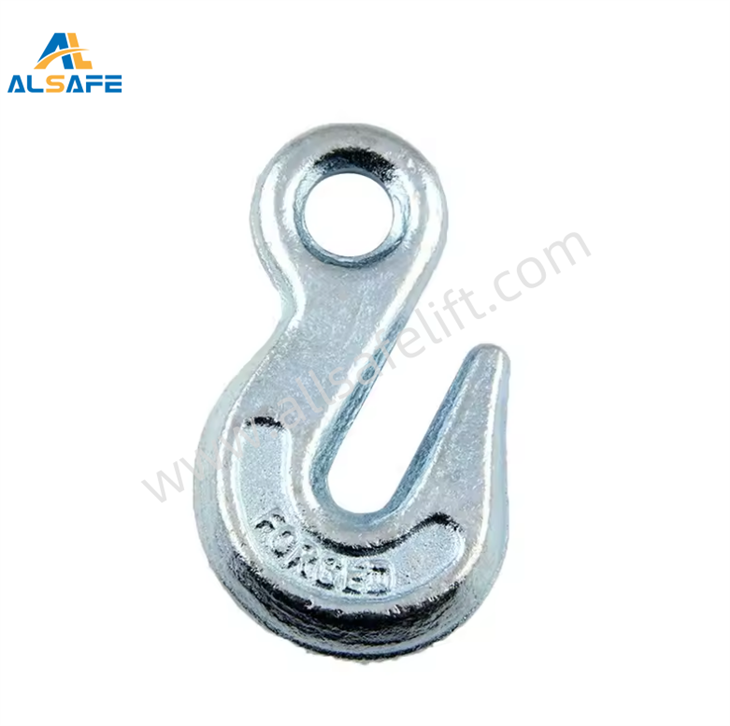

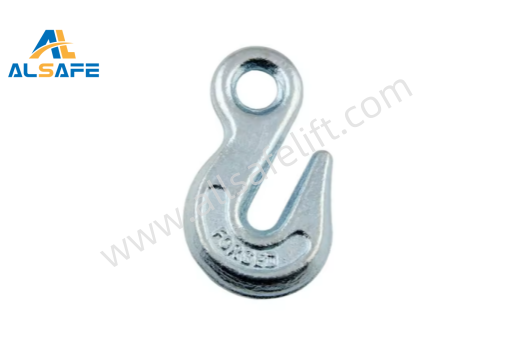

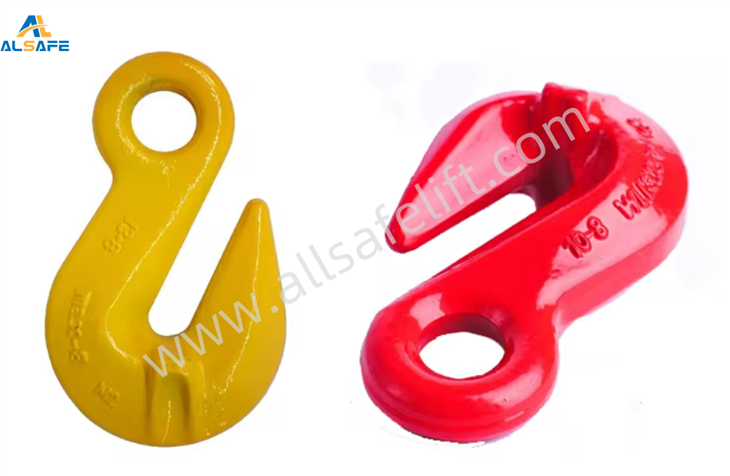

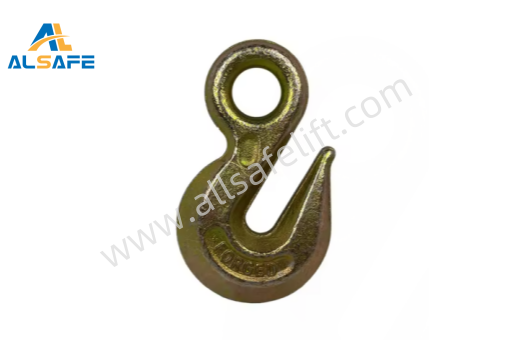

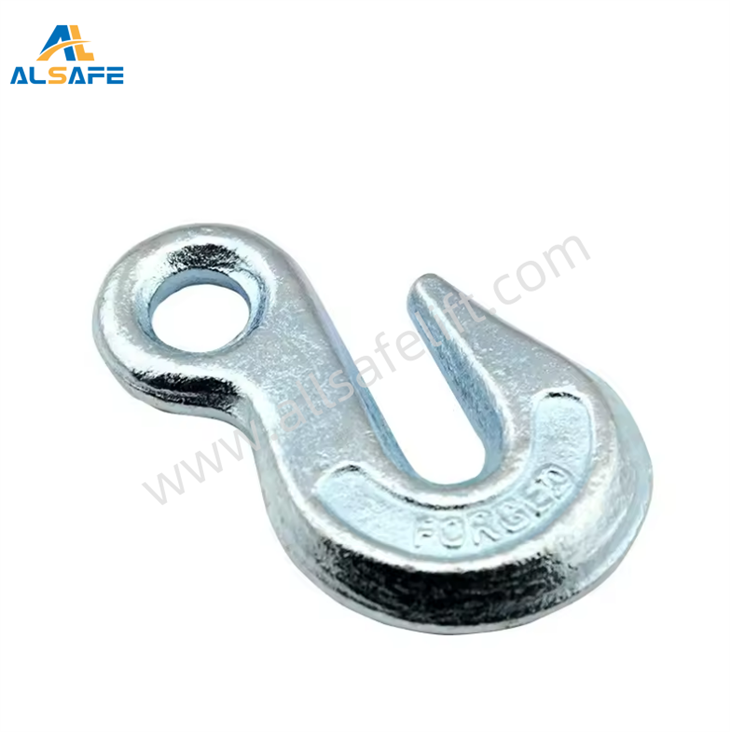

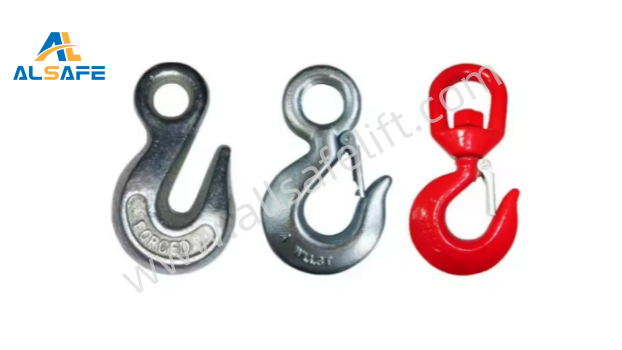

Eye Grab Hook
Special specification and marks can be made according to customers
B.L= 4 times*WLL
Features
Product Material
Our products are made of 20CrMnTi alloy steel, which is a high-strength, wear-resistant steel that ensures durability and load-bearing capacity.

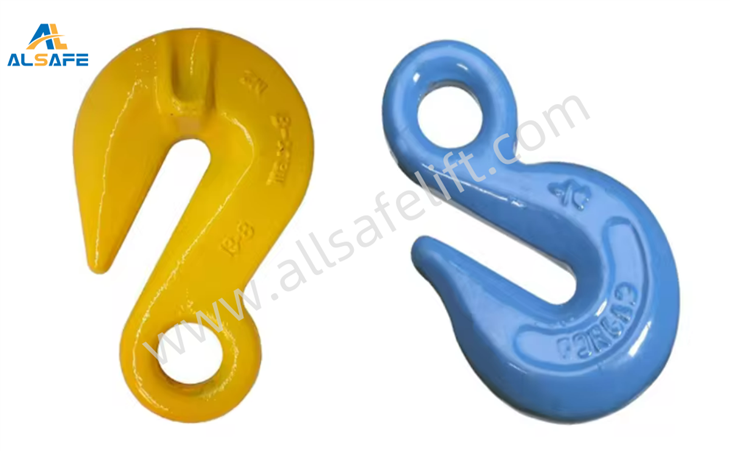

Surface treatment

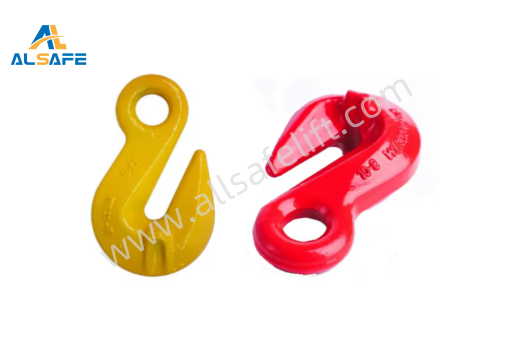

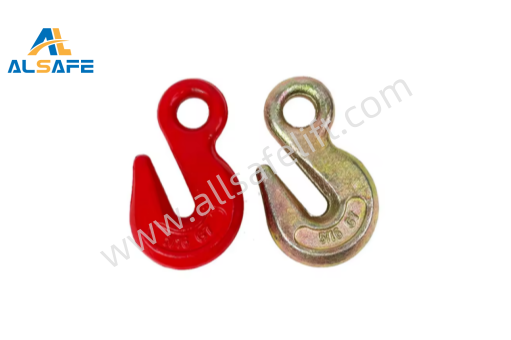

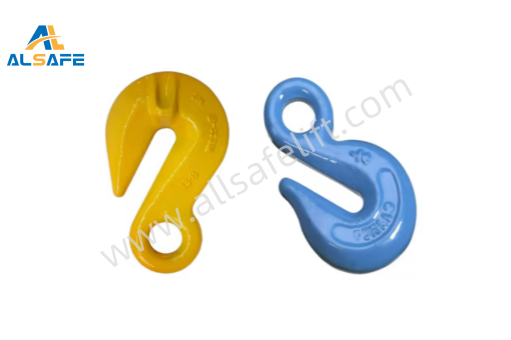

A variety of surface treatment options are available, including color spraying and self-color treatment, to suit different working environments and aesthetic needs.
Manufacturing process
Using roll-forged process, this process improves the density and strength of the material, making the product more sturdy and durable.
Customization services
We provide customization services with special specifications and markings to meet customers' individual needs.
Safety factor
B.L is 4 times that of WLL. Our Eye Grab Hook has an extremely high safety factor to ensure safety during use.
Load Test
The product is proven tested at 2.5 times the working load limit to ensure it can withstand loads exceeding expected loads in actual use.

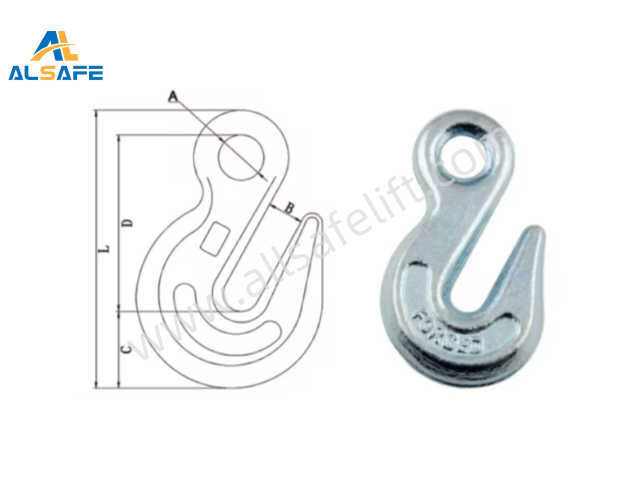

product specifications
| SIZE | WEIGH/LBS | W.LL(4:1) | A | B | E | L | |
|---|---|---|---|---|---|---|---|
| CARBON | ALLOY | ||||||
| 1/4 | 0.36 | 2600 | 3500 | 8.5 | 25 | 9.2 | 78.5 |
| 5/16 | 0.62 | 3900 | 4700 | 10 | 30.5 | 11.2 | 93 |
| 3/8 | 1 | 5400 | 7100 | 13 | 35 | 12.7 | 114.5 |
| 7/16 | 1.5 | 7200 | 8750 | 17 | 42 | 14.5 | 126 |
| 1/2 | 2.22 | 9200 | 12000 | 19 | 47 | 17 | 144 |
| 5/8 | 4.41 | 13000 | 15800 | 23 | 56 | 20 | 177 |
| 3/4 | 6.5 | 20200 | 24700 | 24 | 66.5 | 24 | 207.5 |
Previous

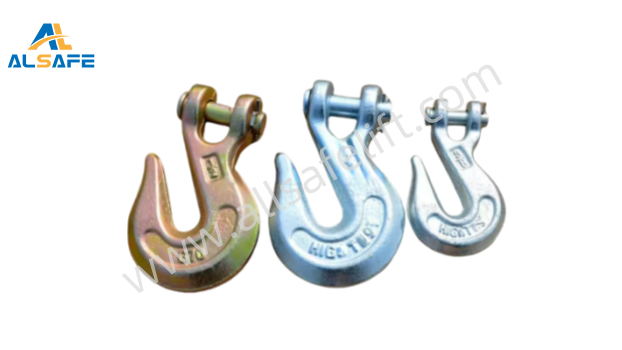

Clevis Shortening Grab HookYou Might Also Like
