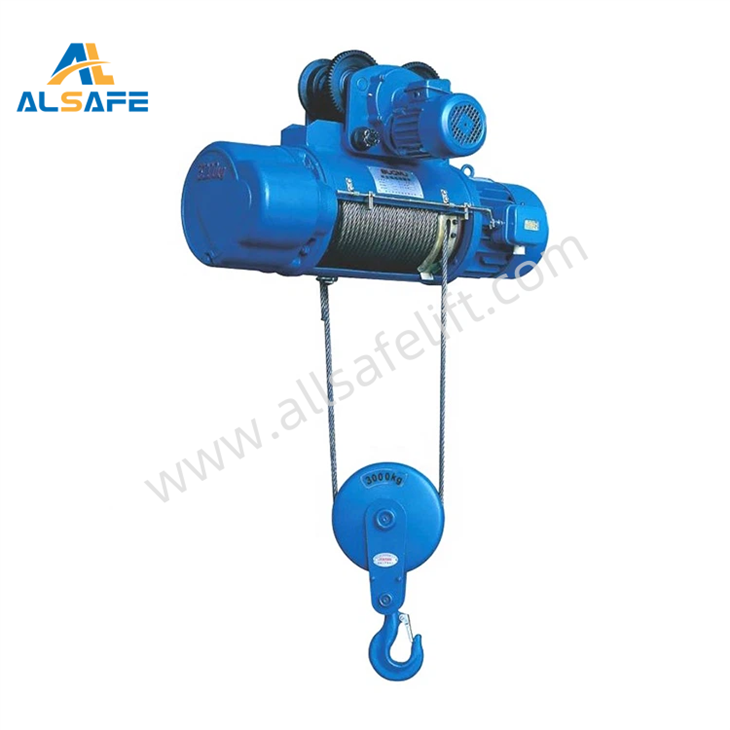

CD1 MD1 Wire Rope Electric Hoist
Competitive advantage
Reducer
Gear and gear axel is made of heated alloy steel ; case and case cover with precise assembly and good seal is made of high quality cast iron. The reducer is independent, so it's easy to load and unload it .
01
Control Box
It has device with up and down stroke protection of break off limiter and can cut off main circuit in an emergency ,which ensures safe operation of electruc block electric elements are of long service lift and operational safety .
02
Steel wire rope
GB/T 20118-2006(6*37+1) hoisting wire rope; Anti-tensile, good flexibility; Good resistance to impact, long lifetime .
03
Conical Motor
The hoist motor used conical rotors of relatively stronger starting torque to brake asynchronous motor F grade insulation and its grade of protection is IP44/IP54.
04
Botton Switch
It's hand-operated , easy to handle ; it has two modes of cord operation and cordless remote control .
05
TECHNICAL PARAMETERS | ||||||
CD1 WIRE ROPE ELECTRIC HOIST | ||||||
Capacity(t) | 0.5 | 1 | 2 | 3 | 5 | 10 |
Jnorm Working Lever | M3 | M3 | M3 | M3 | M3 | M3 |
Lifting Height(m) | 6/9/12 | 6/9/12 | 6/9/12 | 6/9/12 | 6/9/12 | 6/9/12 |
Hoist Speed(m/min) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 7(8/0.7) |
Operating Speed(m/min) | 20(20/6.7) 30(30/10) | 20(20/6.7) 30(30/10) | 20(20/6.7) 30(30/10) | 20(20/6.7) 30(30/10) | 20(20/6.7) 30(30/10) | 20(20/6.7) 30(30/10) |
Lever of Protection | IP44 IP54 | IP44 IP54 | IP44 IP54 | IP44 IP54 | IP44 IP54 | IP44 IP54 |
Tpye of I-Steel Track | 116a-128b | 116a-128b | 120a-145b | 120a-145b | 125a-163b | 125a-163b |
Net weight(kg) | 135/140/155 | 190/195/205 | 250/265/300 | 320/340/350 | 590/630/650 | 820/870/960 |
