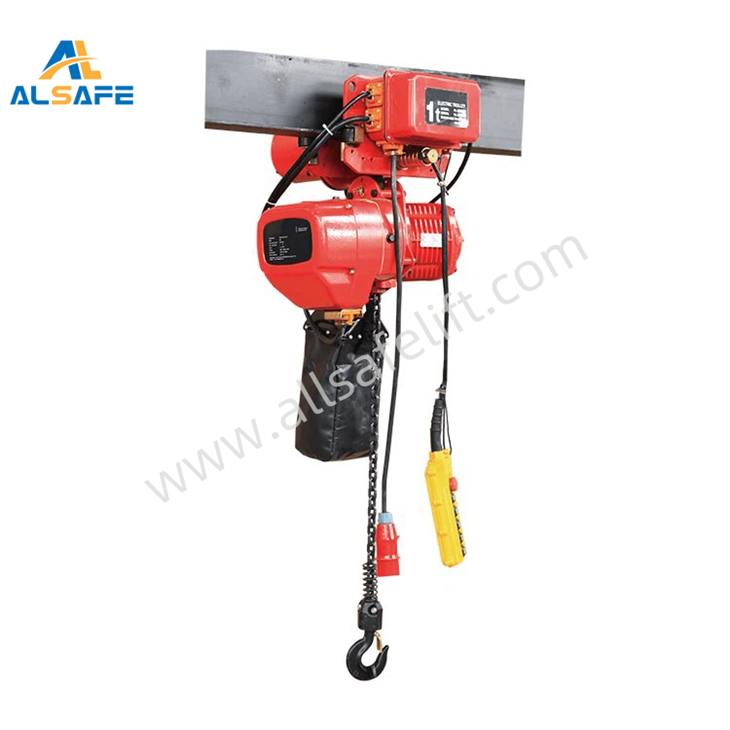

Electric Chain Hoist
Inverse phase sequence protection device
Limit Switch
Side magnetic breaking device
With chain bag
Product advantages
Safety braking system
Equipped with advanced electromagnetic braking device, it can brake quickly when power is cut off to ensure that heavy objects hover and prevent rolling accidents.
Overload protection
When the load exceeds the rated lifting weight, the power supply will be automatically cut off and operation stopped to prevent equipment damage due to overload.
Fast lifting speed
Using high-performance motor and optimized transmission system to achieve fast lifting speed.
Precise control
It can accurately control the speed and position of lifting and lowering to meet different operating needs.
High-Quality Material
The chain is made of high-strength alloy steel and has been specially treated to have good wear resistance and corrosion resistance.
Sealing design
Seal the motor and key components to prevent dust, moisture, etc. from entering the equipment and extend the service life of the equipment.
Features
Small size
Takes up little space and is easy to install and transport.
Light weight
Relatively light weight, easy to move and operate.
Simple operation
The operation interface is simple and clear, and the operator can complete various operations through the control handle.
Remote control possible
Equipped with a wireless remote control, the operator can remotely control the device within a certain range.
Multi-speed adjustment
Equipped with multiple speed adjustment functions, the appropriate speed can be selected according to different operating needs.
Automatic alarm
When an abnormality occurs in the equipment, an alarm signal is automatically sent to remind the operator to deal with it in time.
Maintenance
Inspection contents
Including the wear of chains, hooks, motors, control devices and other components, and whether the connection parts are loose.
Inspection frequency
Depending on the equipment usage and working environment, a comprehensive inspection is generally conducted every quarter.
Cleaning
Clean the surface of the equipment regularly to remove dust, oil and other impurities.
Lubrication
Lubricate chains and other moving parts to reduce friction and wear.
Maintenance
When equipment fails, it should be repaired in time.
Replace parts
Parts that are severely worn or damaged should be replaced in time
Shell : Light aluminium alloy shell is adopted and fit for the use in the terrible work environment
Inverse phase sequence protection device
Limit Switch
Side magnetic breaking device
With chain bag
The chain shall adopt the imported FEC80 ultra heat-treatable aluminium alloy chain
TECHNICAL PARAMETERS | |||||||||
Model | Capacity(t) | Standard Height(m) | Lifting Speed (m/min) | Power(kw) | Rotation Speed (r/min) | Phases | Voltage(v) | Frequency(hz) | I-Beam (mm) |
HHBB0101 | 1 | 3 | 6.6 | 1.5 | 1440 | 3 | 220-440 | 50/60 | 58-153 |
HHBB0201 | 2 | 3 | 6.6 | 3.0 | 1440 | 3 | 220-440 | 50/60 | 82-178 |
HHBB0202 | 2 | 3 | 3.3 | 1.5 | 1440 | 3 | 220-440 | 50/60 | 82-178 |
HHBB0301 | 3 | 3 | 5.4 | 3.0 | 1440 | 3 | 220-440 | 50/60 | 100-178 |
HHBB0302 | 3 | 3 | 4.4 | 3.0 | 1440 | 3 | 220-440 | 50/60 | 100-178 |
HHBB0303 | 3 | 3 | 2.2 | 1.5 | 1440 | 3 | 220-440 | 50/60 | 100-178 |
HHBB0502 | 5 | 3 | 2.7 | 3.0 | 1440 | 3 | 220-440 | 50/60 | 100-178 |
