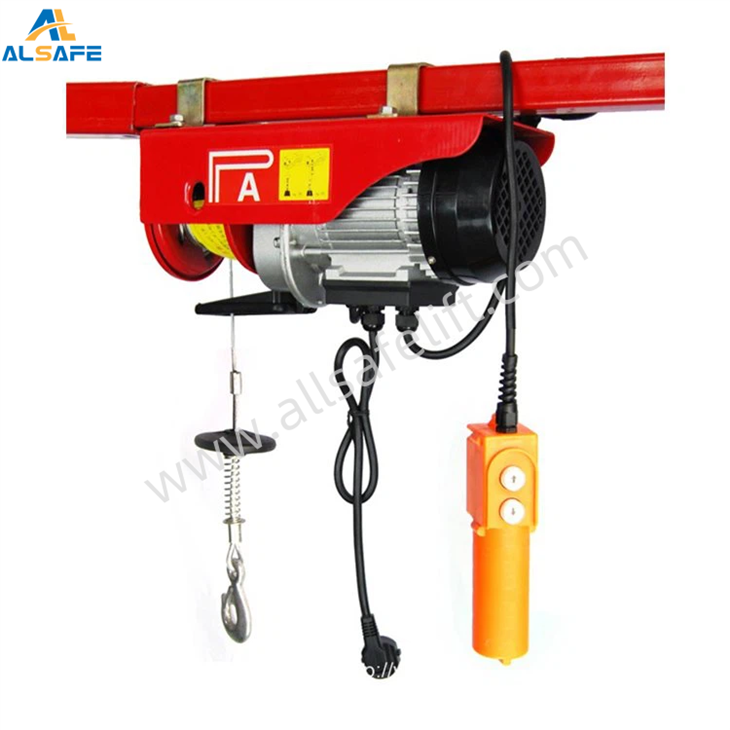

PA Mini Electric Hoist
With reinforced breaking switch
Protection class up to IP54
With up and down limit device
With thermal protection device
Product introduction
PA electric hoist has beautiful shape, its body is strong and durable, all internal gear after high temperature quenching, increase the gear wear resistance and toughness.
With urgent stop switch
With reinforced breaking switch
Protection class up to IP54
With up and down limit device
With thermal protection device
Single phase power available
Simple structure , easy for installation
Features
Lightweight design
The PA Mini Electric Hoist is lightweight and easy to move and operate. This not only reduces labor intensity during installation, but also makes it more flexible during handling.
Low noise
The noise is low during operation and will not cause interference to the surrounding environment. This feature is particularly important in some places with high noise requirements, such as hospitals and schools.
Strong durability
Made of high-quality materials and workmanship, it has good corrosion resistance. Whether it is in a humid environment or an industrial place with high temperature and high dust, it can operate stably.
TECHNICAL PARAMETERS | |||||||
MODEL | PA200 | PA250 | PA400 | PA500 | PA600 | PA800 | PA1000 |
Rated Volt(V) | 220V/50HZ | ||||||
Input Power(w) | 450 | 500 | 750 | 900 | 1050 | 1300 | 1600 |
Capacity(t) | 100/200 | 125/250 | 200/400 | 250/500 | 300/600 | 400/800 | 500/1000 |
Lifting Height(m) | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 |
Lifting Speed(m/min) | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 |
Weight(kg) | 24 | 25 | 33 | 36 | 38 | 40 | 42 |
