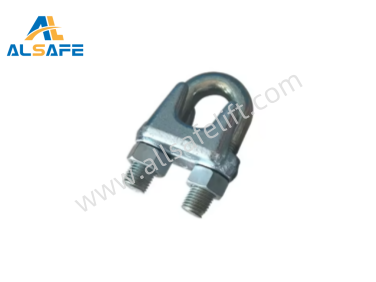

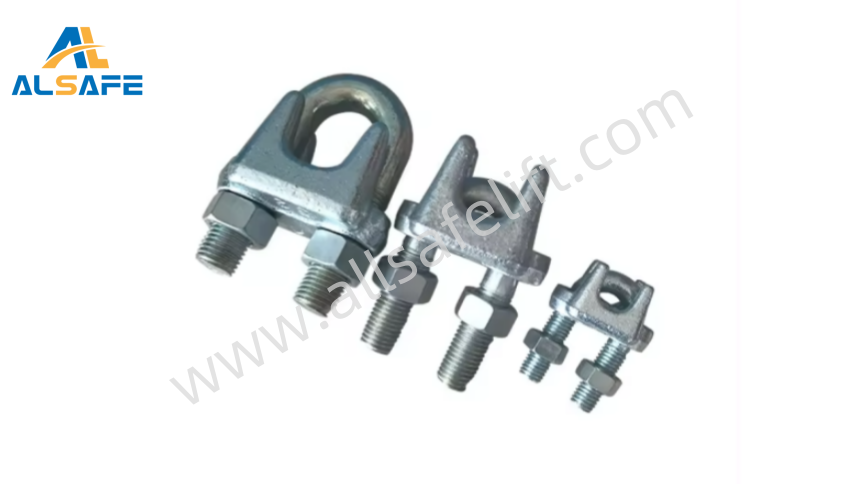

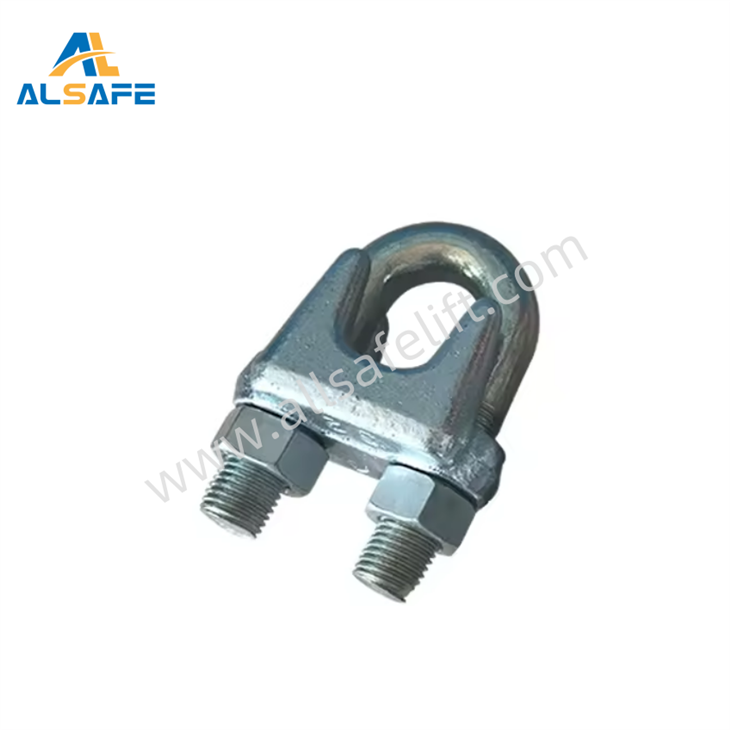

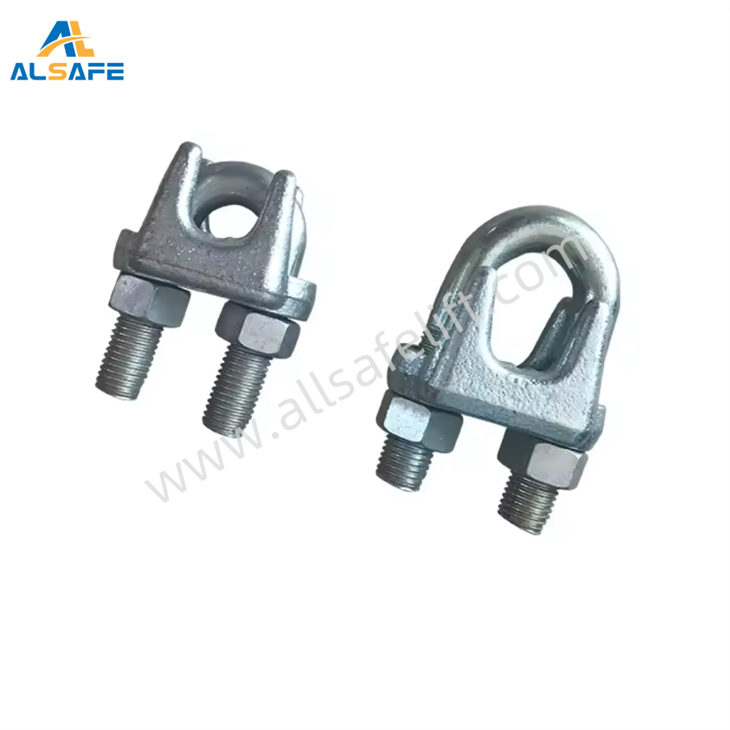

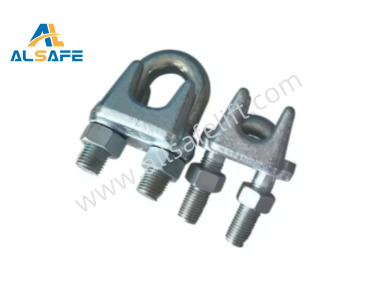

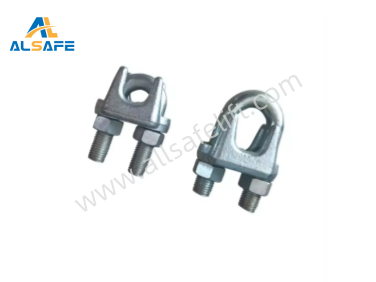

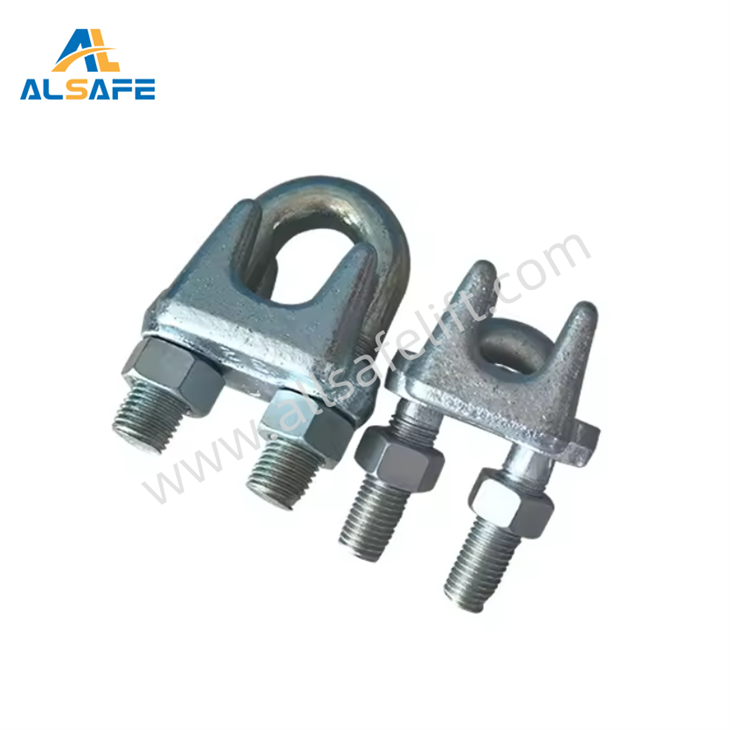

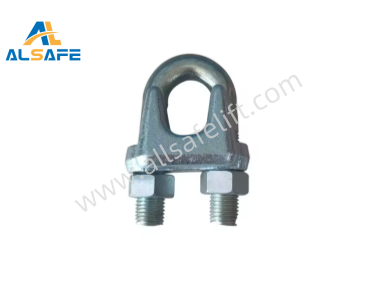

A Type Wire Rope Clip
in one-stop service
We are a leading company specializing in the R&D and production of high-quality metal products, with more than twenty years of industry experience. The company integrates design, production, sales and service, and is committed to providing the most reliable connection solutions to customers around the world.
+
Final Solution
Application
Wire rope clips are used on wire rope eye-loop connections or complete loops, end-to-end connections where socketing or splicing is not feasible or when a temporary joint is required.
Range

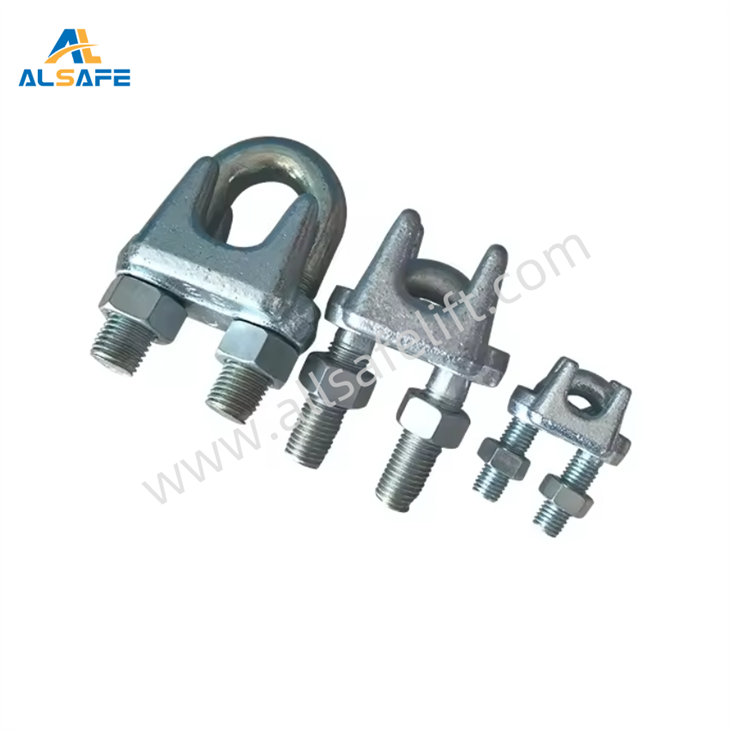

FENGTONG offers a wide range of wire rope clips in specifically standardized models such as EN 13411-5 and DIN wire rope clips. also offers a wide range of other wire rope clips.
Design

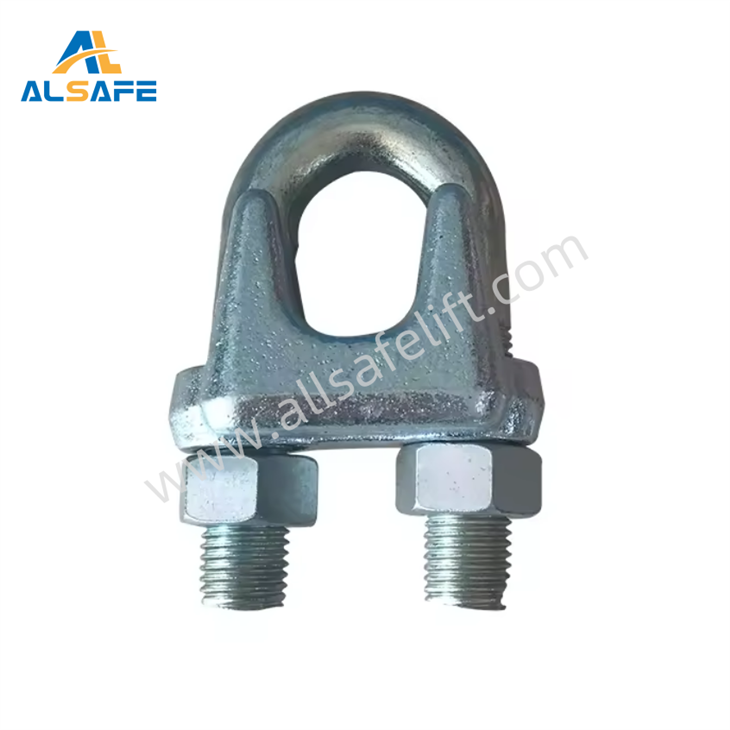

Our wire rope clips are drop forged and have a bridge with grooves to tighten the wire rope properly in the clip; the DIN wire rope clips have a malleable base, without grooves.
Instructions for use
Wire rope clips should be inspected before use to ensure that:
● All markings are legible;
● A wire rope clip with the correct dimensions has been selected;
● The nuts or any other locking system cannot vibrate out of position;
● The wire rope clip is free from nicks, gouges and cracks;
● Never modify, repair or reshape a wire rope clip by machining, welding, heating or bending as this may affect their performance.
product specifications

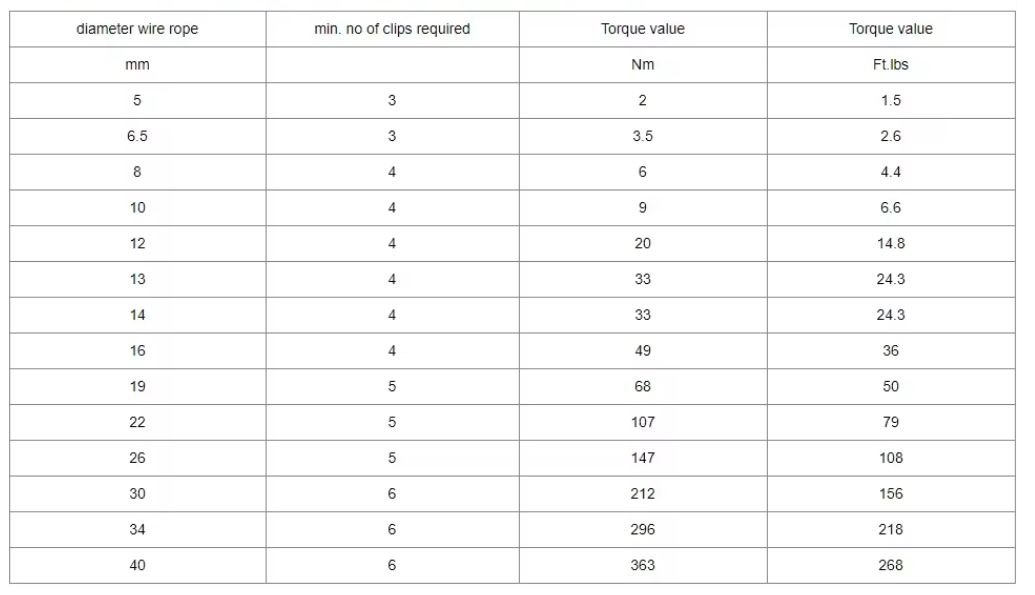

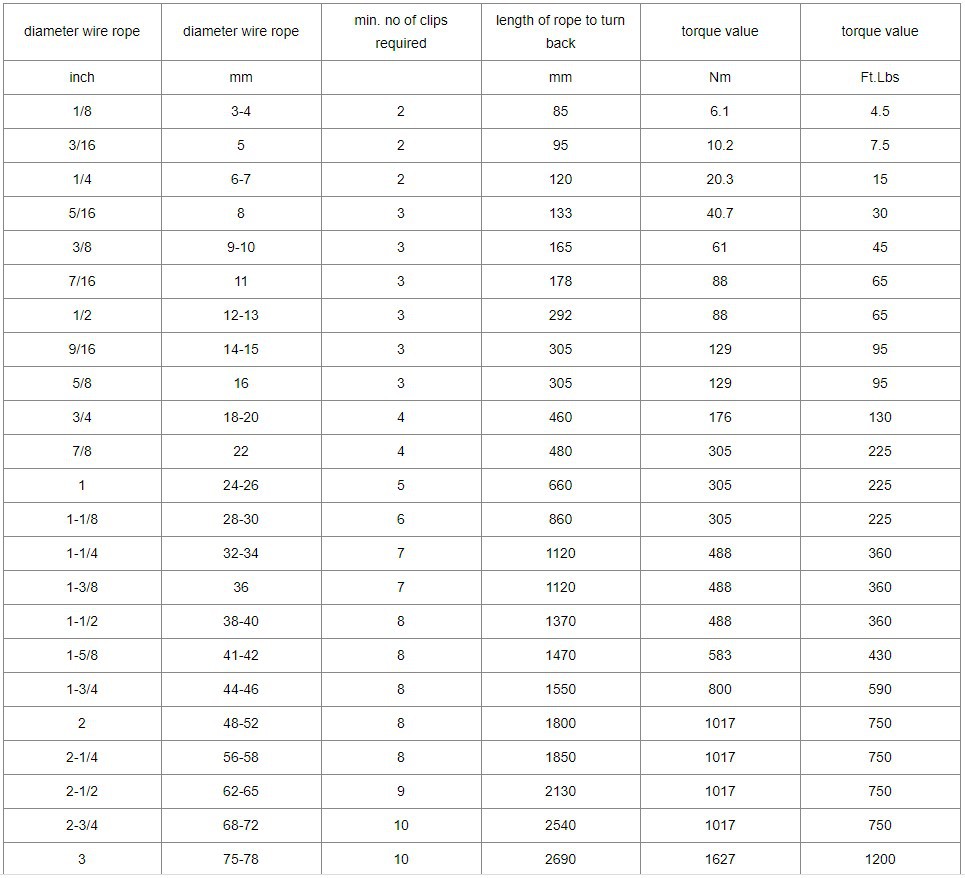

The torque values and the minimum number of clips to be applied for a particular rope size are given in the following tables.
Other considerations
The efficiency of a wire rope termination made with wire rope clips depends on the correct placement of the clips on the rope and on correct fitting and tightening of the clips.
With inadequately tightened nuts or with an insufficient number of wire rope clips the rope end may slide through the clips during use.
The nut may be tight on the thread, yet not tight against the bridge.
Contamination of the thread by dirt, oil or corrosion products, which may prevent correct tightening of the nut.
Forged wire rope clips provide greater bearing surface and more consistent strength than malleable cast iron clips.
Suitable applications of wire rope clips to EN 13411-5 standards include suspending static loads and single use lifting operations which have been assessed by a competent person taking into account appropriate safety factors.
