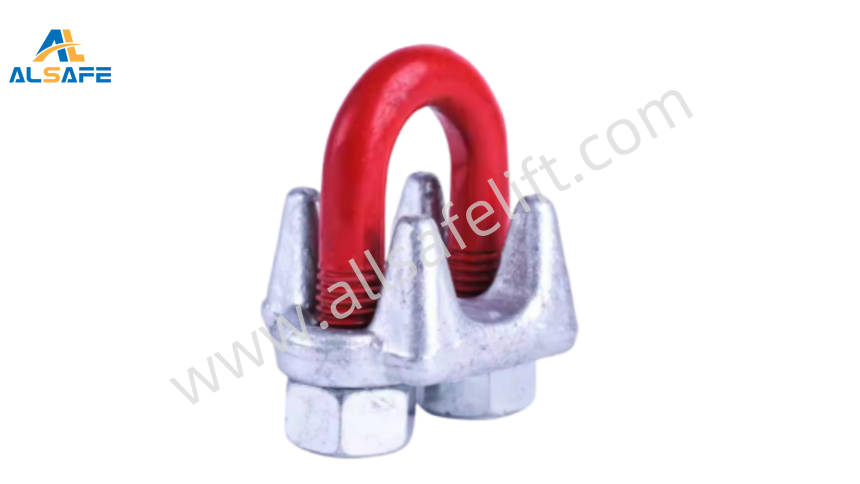

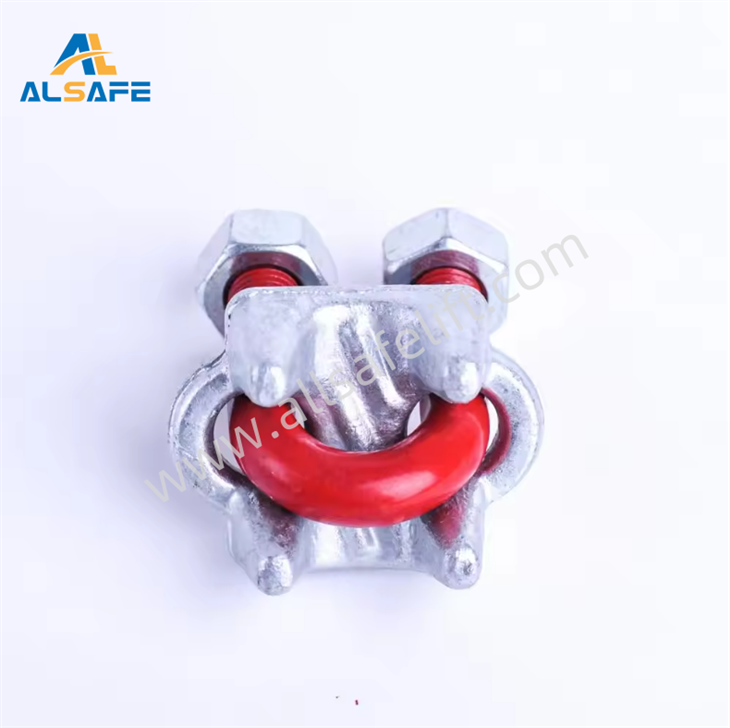

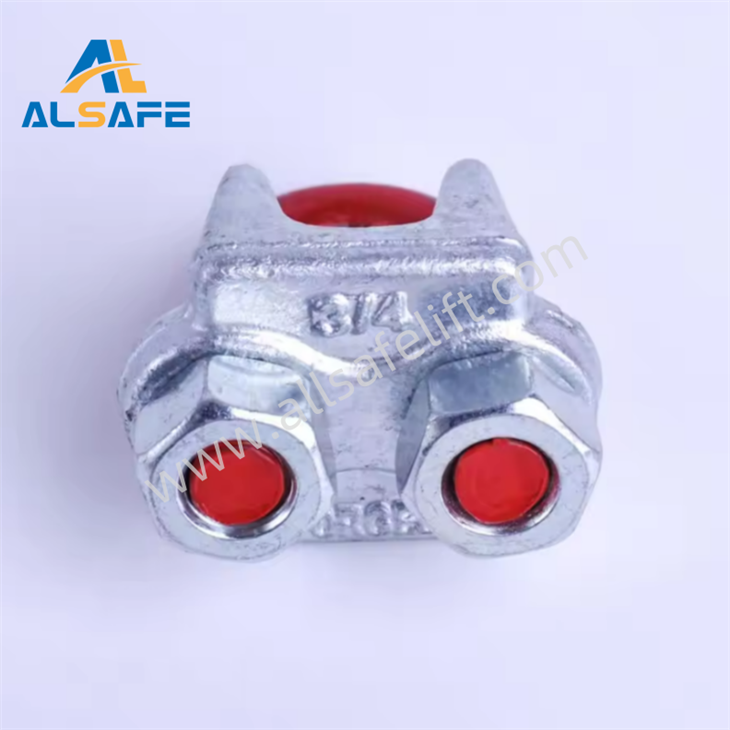

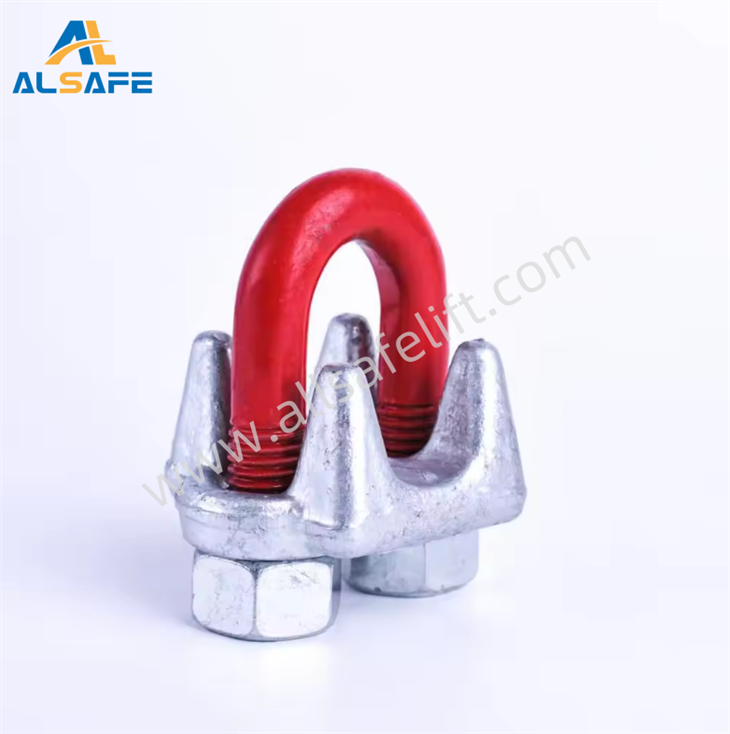

G450 Wire Rope Clip

G450 US Type Wire Rope Clip Cable Clamps are galvanized to resist corrosion and rust, sizes 1/8" through 2-1/2" have forged bases, and sizes up through 1-1/2" have rolled threads. These wire rope clips meet or exceed all requirements of ASME B30.26 and they meet other critical performance requirements including fatigue life, impact properties, and material traceability.

G450 US Type Wire Rope Clip Cable Clamp size is compatible with the Wire Rope diameter, inappropriate selection of wire rope clip size will cause damage to the wire rope or insufficient clamping force. Incorrect installtion of wire rope clip will result in 40% reduction of working efficiency. Furthermore, bigger diameter of rope shall. apply more wire rope clips with appropriate tail length to ensure the consistent working load limit.

The saddle shall be placed on the live end of the wire rope, with the U-bolt on the dead-end side, Use at least two or three wire rope clips to secure the ends properly to the length of the rope, and tighten nuts evenly one by one until reaching the recommended torque.

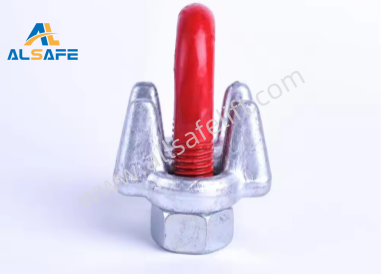

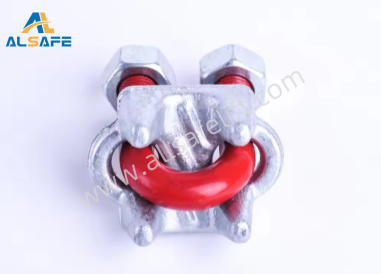

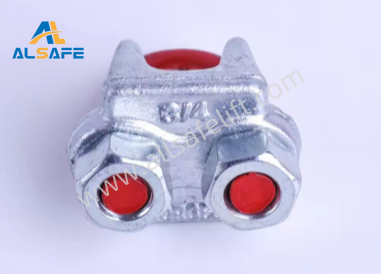

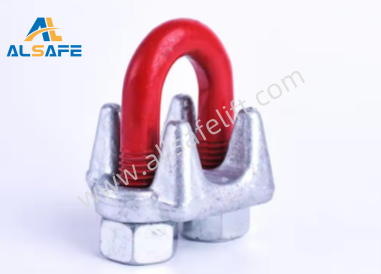

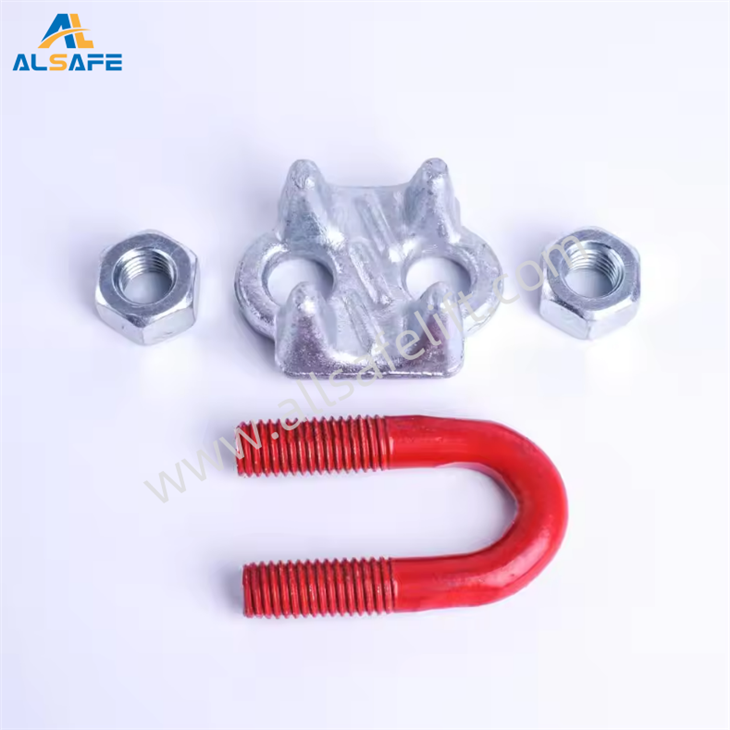

G450 US Type Wire Rope Clip Cable Clamp also referred as U-bolt clip; Is a metal fastener used to secure the end of a wire rope on a structure or other fixed object. Consists of a U-shaped bolt, two nuts, and a saddle Sling made by using wire rope clip are not suitable for lifting purposes, only use it for static load securing.

other: Special specifications and marks can be made according to customers requirements.

CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.
