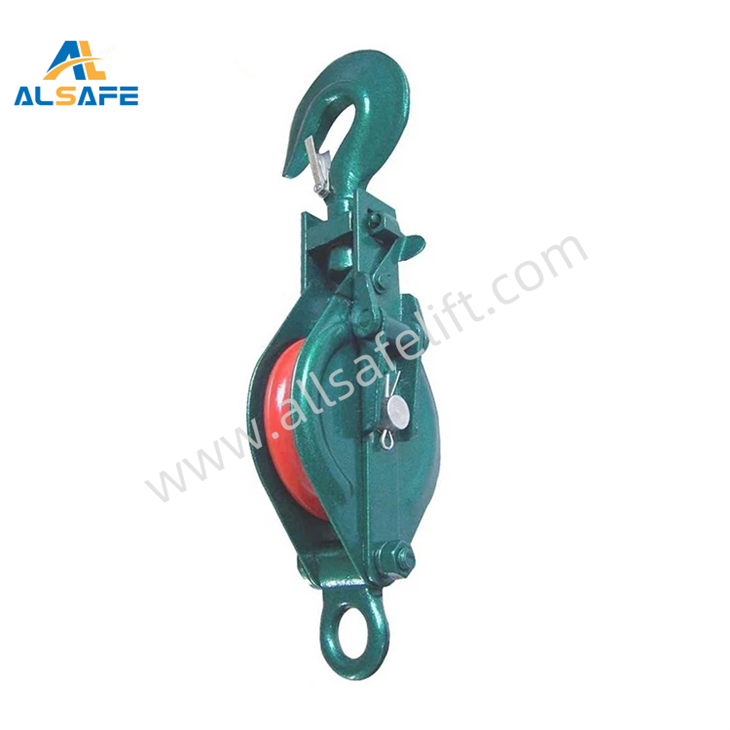

Single Sheave Pulley Block
Material: 45# carbon steel
Surface treatment: painted or galvanized
Safety factor: breaking load is 4 times working load limit
Other kinds of pulley block available
Surface treatment: painted or galvanized
Safety factor: breaking load is 4 times working load limit
Other kinds of pulley block available
Send Inquiry
Product Introduction
Specifications and models
PULLEY BLOCK SINGLE SHEAVE WITH HOOK | |||||
ITEM NO. | SIZE(IN) | WLL(T) | DIA OF ROPE (IN) | NET WEIGHT(KG) | PICTURE |
FTPB-711102 | 2 | 0.25 | 6 | 0.65 |
|
FTPB-711103 | 3 | 0.5 | 8 | 1.4 | |
FTPB-711104 | 4 | 1 | 10 | 2.65 | |
FTPB-711105 | 5 | 1.5 | 13 | 3.8 | |
FTPB-711106 | 6 | 2 | 16 | 6.2 | |
FTPB-711107 | 7 | 3 | 19 | 9.3 | |
FTPB-711108 | 8 | 4 | 22 | 11.5 | |
FTPB-711110 | 10 | 5 | 25 | 16.5 | |
FTPB-711112 | 12 | 6 | 28 | 25 | |
FTPB-711116 | 16 | 10 | 32 | 88 | |
HAND PULLEY BLOCK | ||||
Model | WLL(t) | Hook Latch (mm) | Rope Dia(mm) | Weight(kg) |
HQ05 | 0.5 | 20 | 5 | 2.0 |
HQ10 | 1.0 | 23 | 7 | 3.2 |
HQ20 | 2.0 | 27 | 13 | 7.3 |
HQ32 | 3.2 | 31 | 15 | 13 |
HQ64 | 6.4 | 42 | 16 | 22 |
