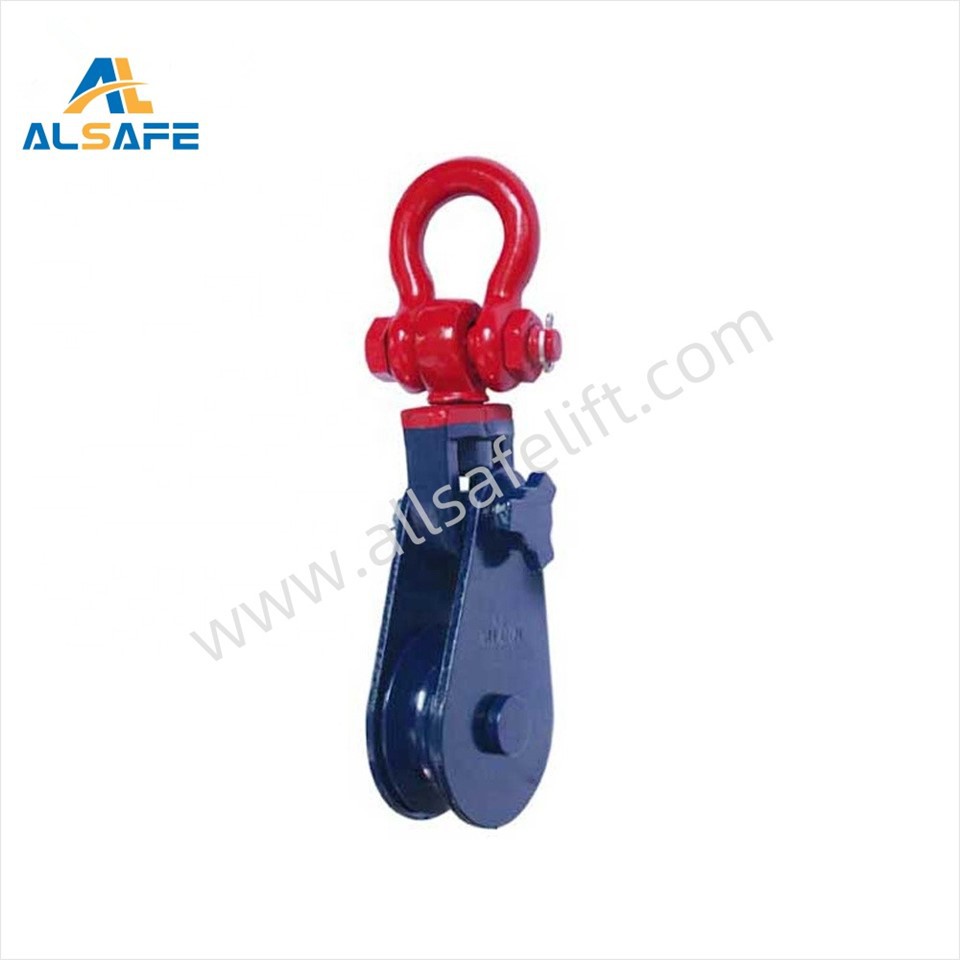

Snatch Block with Shackle
2. Available in Bronze Bushed Only. May be furnished in other Wire Rope sizes.
3. Light champion snatch block as a double sheave block.
4. Drop forged swivel hook or swivel shackle.
We are always at your service when you need
Snatch Block with Shackle is an important lifting and pulling equipment widely used in industry, ships, offshore operations, construction, rescue and other fields. It changes the direction of the force and increases mechanical efficiency by looping the rope or chain around the pulley to achieve efficient lifting or towing operations of heavy objects, while the shackle facilitates quick connection with other equipment or hoisting equipment, enhancing the stability of the entire device. Versatility and convenience.
Square Meters Built
Enterprise Employees
Cooperating Partner
Years Experience
Product advantages
High-strength load-bearing capacity
The pulleys and shackles are made of high-quality alloy materials and undergo precision machining and heat treatment processes to ensure that the products have excellent strength and toughness.
01
Efficient and labor-saving
The optimized pulley design reduces the friction resistance between the rope and the pulley, making force transmission smoother and more efficient. The operation is easier and the labor intensity is reduced.
02
Multifunctional application
Suitable for ropes and chains of various diameters. With the flexibly detachable shackle, it can be quickly connected to various fixed points, hooks, rings, etc.
03
Compact and portable design
The overall structure is compact, small and lightweight, easy to carry and store, and convenient for transfer and transportation between different working locations.
04
Corrosion resistance
The surface has undergone special anti-corrosion treatment, which can effectively resist the erosion of sea water, humid air, chemicals and other harsh environmental factors.
05
Module title
Ultimate Load is 4 times the Working Load Limit.
Available in Bronze Bushed Only. May be furnished in other Wire Rope sizes.

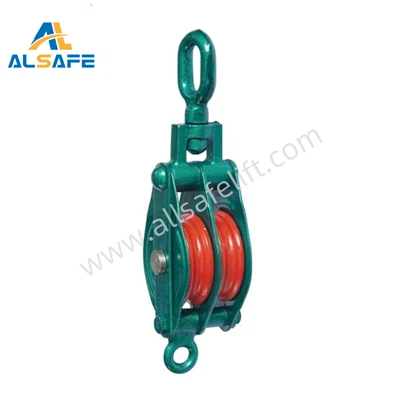

Light champion snatch block as a double sheave block.
Drop forged swivel hook or swivel shackle.
Can be furnished with bronze bushings or roller bearings.
Opening feature permits easy insertion of wire rope in both sheaves with removal of one bolt.
Can be furnished with SS-4055 hook latch.
Pressure lube fittings.
Fatigue rated.
Specifications and models
SNATCH BLOCK WITH SHACKLE | |||||
ITEM NO. | SIZE(IN) | WLL(T) | DIA OF ROPE (IN) | NET WEIGHT(KG) | PICTURE |
FTSB-5803 | 3 | 2 | 3/8 | 2.3 |
|
FTSB-5805 | 4-1/2 | 4 | 1/2 | 5.8 | |
FTSB-5806 | 6 | 8 | 3/4 | 12.5 | |
FTSB-5808 | 8 | 8 | 3/4 | 16.5 | |
FTSB-5810 | 10 | 8 | 3/4 | 20.0 | |
FTSB-5812 | 12 | 8 | 3/4 | 25 | |
FTSB-5814 | 14 | 8 | 3/4 | 36.5 | |
FTSB-5816 | 16 | 15 | 7/8 | 60 | |
FTSB-5818 | 18 | 15 | 1 | 72 | |
