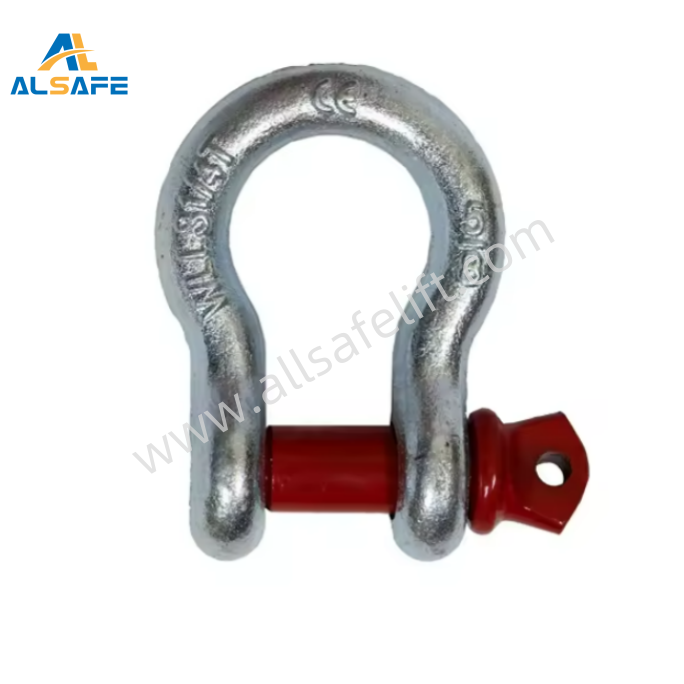

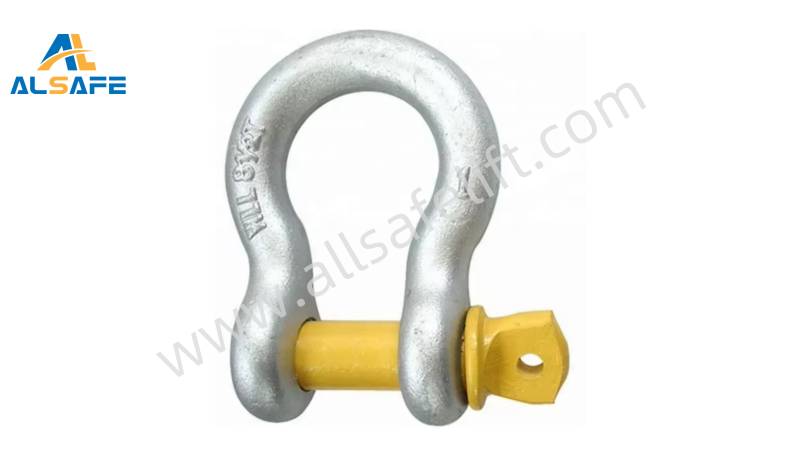

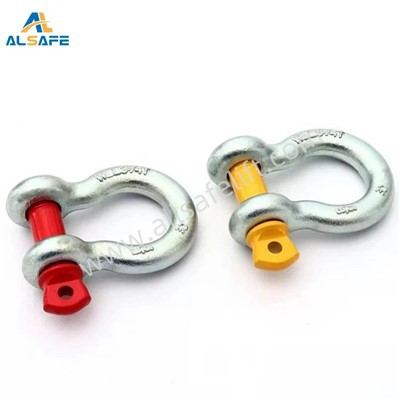

US Type Bow Shackle
US Type Bow Shackle-The One you can trust
US Type Bow Shackle is a connection accessory widely used in various fields. Its unique bow design provides excellent strength and reliability. It is usually made of high-quality alloy steel and undergoes precise machining and heat treatment processes to ensure excellent performance in various harsh environments.
Square Meters Built
Enterprise Employees
Cooperating Partner
Years Experience
Product features
High-strength materials
Made of high-strength alloy steel, it has extremely high tensile strength and fatigue resistance. It can withstand larger loads and is suitable for heavy machinery, hoisting equipment, navigation and other fields with extremely high safety requirements.
Exquisite craftsmanship
Precision forging process: ensure the uniformity and density of the overall structure of the product, and improve the strength and toughness of the product. Heat treatment process: Through heat treatment processes such as quenching and tempering, the hardness and wear resistance of the steel are enhanced while maintaining good toughness, effectively extending the service life of the product.
Unique design
Bow structure: This design allows the shackle to distribute the load more evenly when it is stressed, reducing stress concentration and improving the stability and safety of the connection. Large opening design: convenient for quick connection and disassembly of various connectors, improving work efficiency.
surface treatment
Galvanizing treatment: A dense zinc layer is formed on the surface of the product to effectively prevent rust and corrosion. Galvanizing not only improves the aesthetics of the product, but also gives it a longer service life in humid and harsh environments.
product specifications

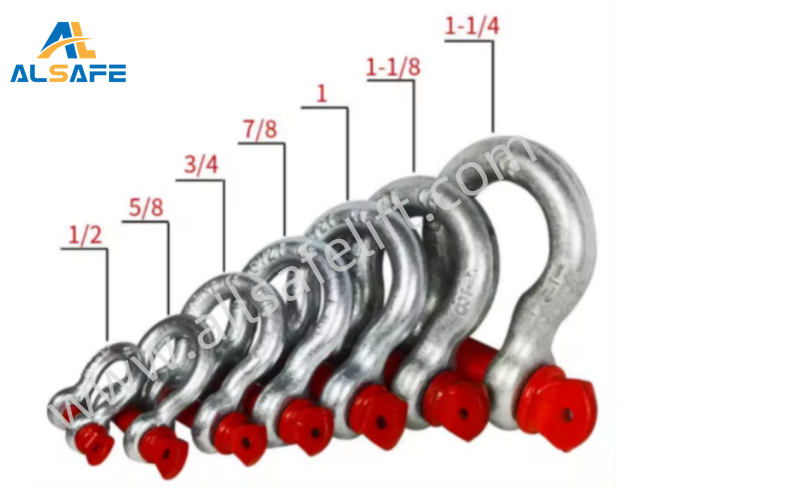

Size range: A variety of sizes are available to meet the needs of different customers. Common sizes include 1/4", 3/8", 1/2", 5/8", 3/4", 1", etc. You can choose the appropriate size according to the actual usage scenario.
Load Ratings: Different sizes of shackles have different load ratings, ranging from a few thousand pounds to several tons. For example, a 1/4" shackle is typically rated for a few thousand pounds, while a 1" shackle can be rated for several tons. When selecting a product, be sure to select a shackle with an appropriate load rating based on the actual working load to ensure safe use.
Application areas
Hoisting industry
Maritime field
transportation

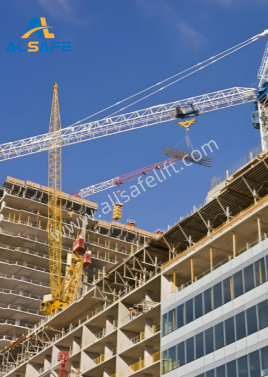

construction

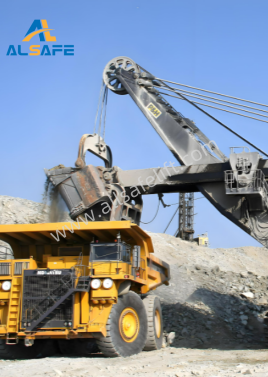

Mining field
Precautions for use
Careful inspection during daily use will greatly increase the service life of the product.
Check for updates
Before use, check the appearance of the product for damage, deformation, cracks and other defects. If there is any abnormality, stop using it and replace it with a new one.
01
Use according to specifications
Use strictly in accordance with the rated load of the product and do not overload. Overloading may cause the shackle to break, causing serious safety accidents.
02
Install the product correctly
Install the shackle correctly, ensuring the pins are securely installed and locking devices such as cotter pins are intact. During use, regularly check the status of the pins and locking devices, and tighten them in time if they are loose.
03
Products using special surface treatments
Avoid long-term use of shackle in corrosive environments such as strong acid and strong alkali. If used, products with special surface treatments should be selected.
04
Store correctly
When storing shackle, keep it in a dry and ventilated environment and avoid contact with chemicals. At the same time, shackles of different sizes and specifications should be stored in categories.
05
product specifications
SHACKLE G209 | |||||
Size (In) | WLL(T) | Weight(kg) | Safety Factor (4:1) | Safety Factor (6:1) | Picture |
1/4 | 0.5 | 0.05 | 2.0 | 3.0 |
|
5/16 | 0.75 | 0.08 | 3.0 | 4.5 | |
3/8 | 1 | 0.14 | 4.0 | 6.0 | |
7/16 | 1.5 | 0.2 | 6.0 | 9.0 | |
1/2 | 2 | 0.31 | 8.0 | 12.0 | |
5/8 | 3.25 | 0.61 | 13.0 | 19.5 | |
3/4 | 4.75 | 1.05 | 19.0 | 28.5 | |
7/8 | 6.5 | 1.52 | 25.6 | 39.0 | |
1 | 8.5 | 2.25 | 34.0 | 51.0 | |
1-1/8 | 9.5 | 3.25 | 38.0 | 57.0 | |
1-1/4 | 12 | 4.5 | 48.0 | 72.0 | |
1-3/8 | 13.5 | 6.0 | 54.0 | 81.0 | |
1-1/2 | 17 | 7.85 | 68.0 | 102.0 | |
1-3/4 | 25 | 12.9 | 100.0 | 150.0 | |
2 | 35 | 18.5 | 140.0 | 210.0 | |
2-1/2 | 55 | 36.5 | 220.0 | 330.0 | |
SHACKLE G210 | |||||
Size (In) | WLL(T) | Weight(kg) | Safety Factor (4:1) | Safety Factor (6:1) | Picture |
1/4 | 0.5 | 0.05 | 2.0 | 3.0 |
|
5/16 | 0.75 | 0.08 | 3.0 | 4.5 | |
3/8 | 1 | 0.13 | 4.0 | 6.0 | |
7/16 | 1.5 | 0.18 | 6.0 | 9.0 | |
1/2 | 2 | 0.28 | 8.0 | 12.0 | |
5/8 | 3.25 | 0.55 | 13.0 | 19.5 | |
3/4 | 4.75 | 0.95 | 19.0 | 28.5 | |
7/8 | 6.5 | 1.45 | 25.6 | 39.0 | |
1 | 8.5 | 2.1 | 34.0 | 51.0 | |
1-1/8 | 9.5 | 2.9 | 38.0 | 57.0 | |
1-1/4 | 12 | 4.0 | 48.0 | 72.0 | |
1-3/8 | 13.5 | 5.6 | 54.0 | 81.0 | |
1-1/2 | 17 | 6.9 | 68.0 | 102.0 | |
1-3/4 | 25 | 11.5 | 100.0 | 150.0 | |
2 | 35 | 17.5 | 140.0 | 210.0 | |
2-1/2 | 55 | 31.8 | 220.0 | 330.0 | |
SHACKLE G2130 | |||||
Size (In) | WLL(T) | Weight(kg) | Safety Factor (4:1) | Safety Factor (6:1) | Picture |
1/4 | 0.5 | 0.08 | 2.0 | 3.0 |
|
5/16 | 0.75 | 0.1 | 3.0 | 4.5 | |
3/8 | 1 | 0.15 | 4.0 | 6.0 | |
7/16 | 1.5 | 0.22 | 6.0 | 9.0 | |
1/2 | 2 | 0.35 | 8.0 | 12.0 | |
5/8 | 3.25 | 0.67 | 13.0 | 19.5 | |
3/4 | 4.75 | 1.1 | 19.0 | 28.5 | |
7/8 | 6.5 | 1.65 | 25.6 | 39.0 | |
1 | 8.5 | 2.4 | 34.0 | 51.0 | |
1-1/8 | 9.5 | 3.55 | 38.0 | 57.0 | |
1-1/4 | 12 | 4.8 | 48.0 | 72.0 | |
1-3/8 | 13.5 | 6.5 | 54.0 | 81.0 | |
1-1/2 | 17 | 8.5 | 68.0 | 102.0 | |
1-3/4 | 25 | 14.0 | 100.0 | 150.0 | |
2 | 35 | 19.0 | 140.0 | 210.0 | |
2-1/2 | 55 | 39.0 | 220.0 | 330.0 | |
SHACKLE G2150 | |||||
Size (In) | WLL(T) | Weight(kg) | Safety Factor (4:1) | Safety Factor (6:1) | Picture |
1/4 | 0.5 | 0.06 | 2.0 | 3.0 |
|
5/16 | 0.75 | 0.09 | 3.0 | 4.5 | |
3/8 | 1 | 0.14 | 4.0 | 6.0 | |
7/16 | 1.5 | 0.21 | 6.0 | 9.0 | |
1/2 | 2 | 0.33 | 8.0 | 12.0 | |
5/8 | 3.25 | 0.6 | 13.0 | 19.5 | |
3/4 | 4.75 | 1.05 | 19.0 | 28.5 | |
7/8 | 6.5 | 1.6 | 25.6 | 39.0 | |
1 | 8.5 | 2.25 | 34.0 | 51.0 | |
1-1/8 | 9.5 | 3.2 | 38.0 | 57.0 | |
1-1/4 | 12 | 4.5 | 48.0 | 72.0 | |
1-3/8 | 13.5 | 6.15 | 54.0 | 81.0 | |
1-1/2 | 17 | 7.6 | 68.0 | 102.0 | |
1-3/4 | 25 | 12.9 | 100.0 | 150.0 | |
2 | 35 | 18.6 | 140.0 | 210.0 | |
2-1/2 | 55 | 33.3 | 220.0 | 330.0 | |
