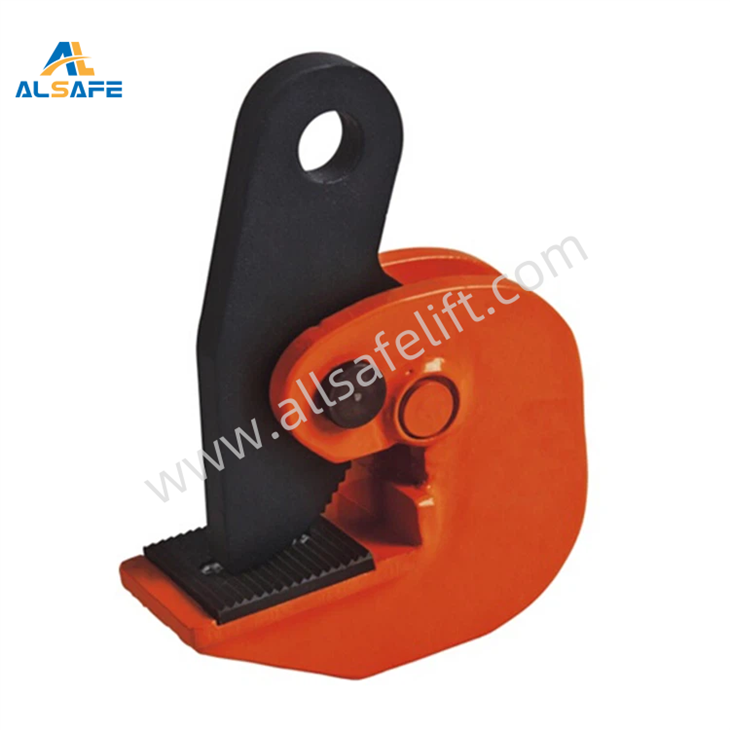

Horizontal Plate Lifting Clamp
Wide variety of jaw openings available : 0-40mm
Individually proof tested to 200% of WLL with certification
Product advantages
Safe and reliable
Made of high-quality high-strength alloy steel, it has high load-bearing capacity and stable clamping performance to ensure that safety accidents such as slipping and loosening will not occur during lifting.
01
Easy to operate
The design is simple and the operation is simple and easy to understand. No complicated operating procedures and professional skills are required. It can be installed and disassembled quickly to improve work efficiency.
02
Wide scope of application
It can be applied to horizontal steel plates of various sizes and thicknesses, and has strong versatility to meet the lifting needs of different scenarios.
03
Efficient and durable
Carefully designed and manufactured, it has good wear resistance and corrosion resistance, long service life, and can work stably for a long time.
04
Precise positioning
It can accurately locate the position of the steel plate, ensure the stability and verticality of the steel plate during lifting, and reduce damage to the steel plate.
05
Features
Unique clamping structure
It can firmly clamp the steel plate, and the clamping force is evenly distributed to prevent the steel plate from deforming.
01
Anti-skid design
The surface is treated with anti-skid to increase friction, prevent the steel plate from sliding during lifting, and improve safety.
02
Lightweight design
The overall structure is compact and light in weight, making it easy to carry and operate and reduce labor intensity.
03
Adjustability
It can be adjusted according to different steel plate thicknesses and sizes to adapt to various working conditions.
04
Maintenance
01.Regular inspection
Regularly inspect the clamping device to see if there is wear, deformation, looseness, etc., and find and deal with problems in time.
02.Cleaning and maintenance
Keep the surface of the clamping device clean to prevent dust, oil and other impurities from entering the clamping mechanism.
03.Lubrication and maintenance
Lubricate the clamping device regularly to ensure flexible rotation and reduce wear.
04.Storage environment
Store the clamping device in a dry, well-ventilated environment to avoid moisture and rust.
Product introduction
Use in lifting and transfer in horizontal position of non-sagging materials or bundles of non-sagging materials
Wide variety of jaw openings available : 0-40mm
Individually proof tested to 200% of WLL with certification
Serial number and Proof load test stamp on body
Manufactured by an ISO9001 facility
TECHNICAL PARAMETERS | ||||||
ItemNo. | WLL(t) | Load Load(t) | Jaw Opening(mm) | Net Weight(kg) | ||
Single | Double | Single | Double | |||
PDB075 | 0.75 | 1.50 | 1.13 | 2.25 | 0-25 | 2.4 |
PDB150 | 1.50 | 3.00 | 2.25 | 4.50 | 0-25 | 4.0 |
PDB125 | 2.50 | 5.00 | 3.75 | 7.50 | 0-40 | 14.0 |
Model | PDB0.8 | PDB1 | PDB1.6 | PDB2 | PDB3.2 | PDB4 | PDB5 | PDB6 | PDB8 | PDB10 | PDB16 | PDB30 |
WLL(t/2pc) | 0.8 | 1 | 1.6 | 2 | 3.2 | 4 | 5 | 6 | 8 | 10 | 16 | 30 |
Jaw Opening(mm) | 0-25 | 0-30 | 0-30 | 0-40 | 0-45 | 0-50 | 0-55 | 0-130 | 0-130 | 0-140 | 50-150 | 100-270 |
Net Weight(kg) | 2.5 | 3.5 | 4 | 5 | 6 | 6.6 | 7.5 | 22 | 26 | 28 | 50 | 108 |
