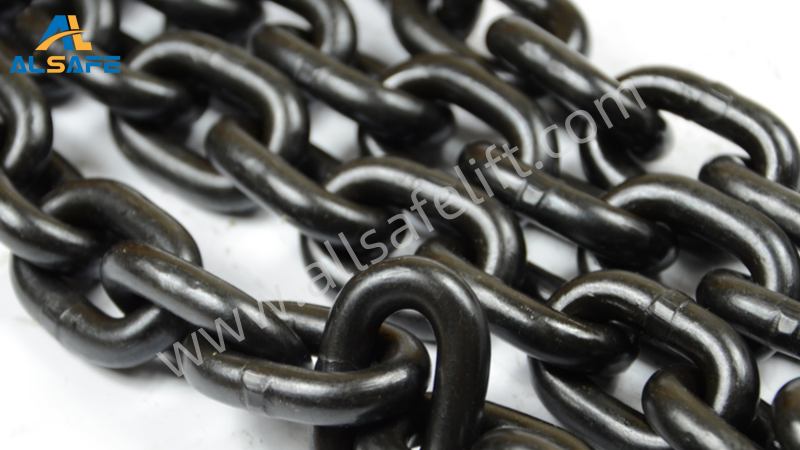

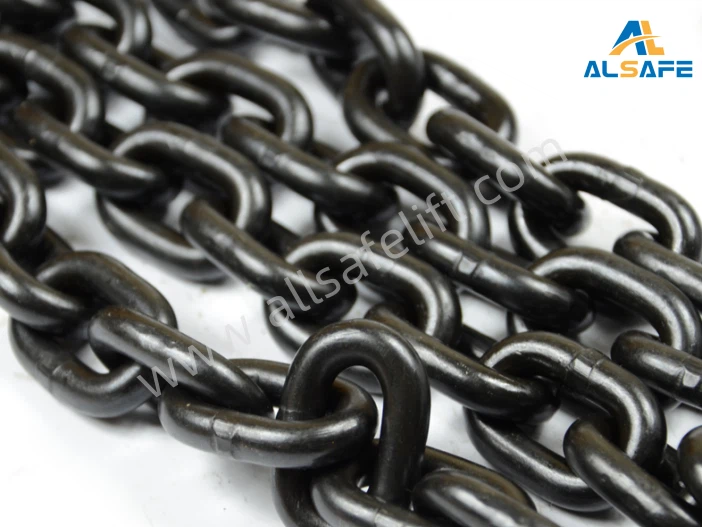

G80 Lifting Chain

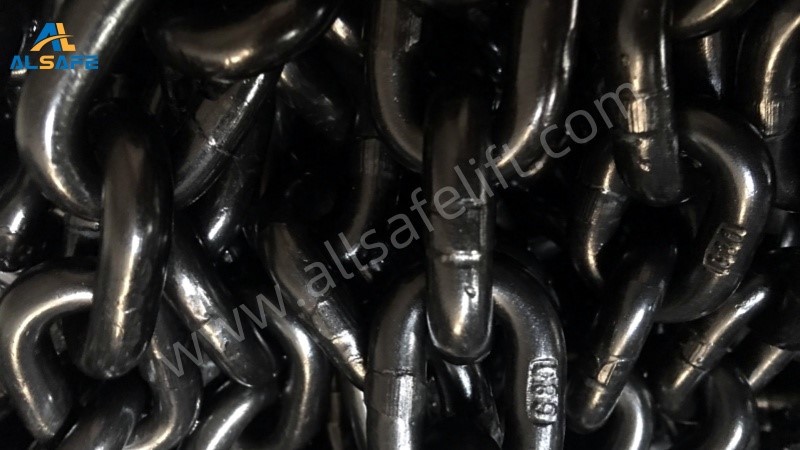

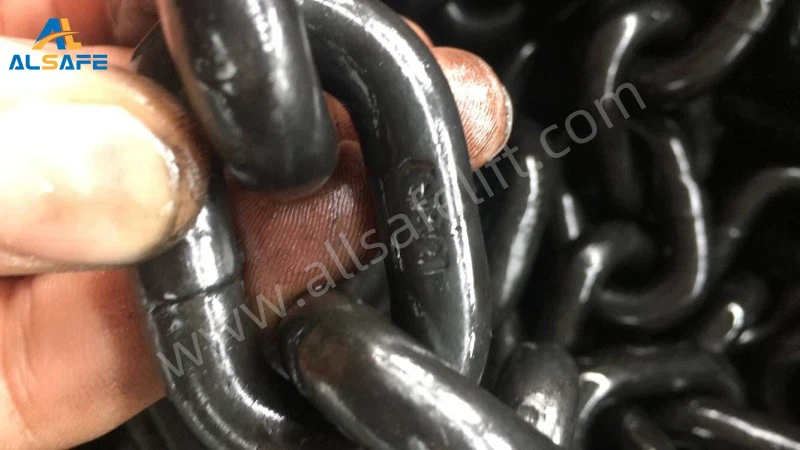

Recognizable by the T8 embossed mark.
G80/T8 mark or mark as per request
Hoist load chain are made of alloy steel in compliance with EN 818-7. The load chain is marked with T8 mark. It represents the ultimate in strength and wear resistance. The chain strap is tested (tested to 200% of vertical rated capacity) to ensure the quality and integrity of the unit. Each meter is individually serialized for traceability. The Grade 80 load chain can be used to work in environmental temperature in the range of 200 ' C to -40 ' C.
Characteristics
Heat treated for tensile strength, resistance to wear and shock absorbing capabilities.
Recognizable by the T8 embossed mark.
G80/T8 mark or mark as per request
Product Features
The alloy steel chain is used for chain hoist and lever hoist and chain slings . It is heat treated to increase tensile strength, resistance to wear, and to enhance the shock absorbing capabilities. It is easily recognizable by the embossed T8 mark.
5000+
Square Meters Built
800+
Enterprise Employees
100+
Cooperating Partner
20+
Years Experience
Key Information
| TECHNICAL PARAMETERS | ||||||
Item No. | Material Dia(mm) | Inside Length(mm) | Outside Width(mm) | WLL(t) | Min Breaking Load(t) | Weight(kg/m) |
AW-80-05 | 5 | 15.00 | 16.25 | 0.65 | 2.60 | 0.50 |
AW-80-06 | 6 | 18.00 | 19.50 | 1.00 | 4.00 | 0.80 |
AW-80-063 | 6.3 | 19.80 | 21.50 | 1.41 | 5.00 | 0.84 |
AW-80-07 | 7 | 21.00 | 22.75 | 1.41 | 5.00 | 1.10 |
AW-80-071 | 7.1 | 21.30 | 24.00 | 1.60 | 6.40 | 1.15 |
AW-80-08 | 8 | 24.00 | 26.00 | 2.00 | 8.00 | 1.40 |
AW-80-09 | 9 | 27.00 | 29.25 | 2.50 | 10.00 | 1.82 |
AW-80-10 | 10 | 30.00 | 32.50 | 3.20 | 12.80 | 2.20 |
AW-80-11 | 11 | 33.00 | 36.00 | 3.80 | 15.20 | 2.70 |
AW-80-13 | 13 | 39.00 | 42.25 | 5.00 | 20.00 | 3.70 |
AW-80-16 | 16 | 48.00 | 52.00 | 8.00 | 32.00 | 5.60 |
Product features
High strength
The G80 lifting chain has a strong load-bearing capacity and can safely lift and carry heavy objects.
High safety
The safety factor stipulated by the state is 4 times, that is, the breaking load of the chain is 4 times its rated working load, ensuring safety during use.
Durability
The chain has undergone special surface treatment (such as polishing, blackening, dipping, spray painting, etc.) to improve its corrosion resistance and wear resistance and extend its service life.
Adjustability
The length of the chain can be adjusted according to the lifting height of the lifting object, which improves the flexibility and convenience of use.
surface treatment
G80 lifting chains are available in various surface treatments
Polishing
Make the surface of the chain smooth and bright.
Blackening
Improves the corrosion resistance of the chain.
Dip paint/spray paint
Enhance the protective performance of the chain.
Hanging plastic
Provides an extra layer of protection.
Hot-dip galvanizing
further improves the anti-corrosion performance of the chain.
Electroplating
Increases the hardness and wear resistance of the chain.
Dacromet
An advanced anti-corrosion treatment technology that provides long-lasting anti-corrosion protection.
product mark

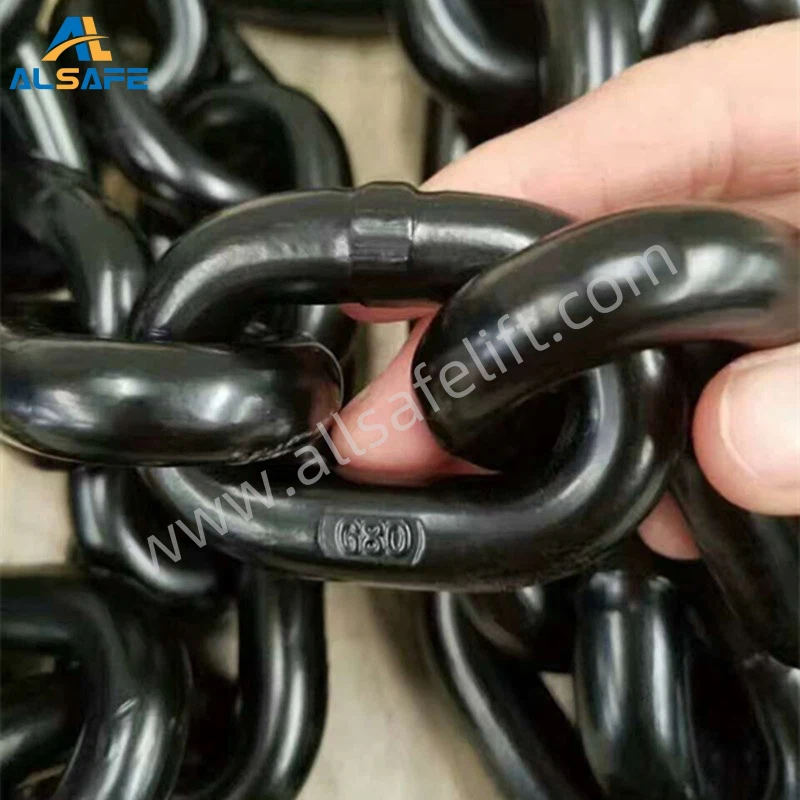

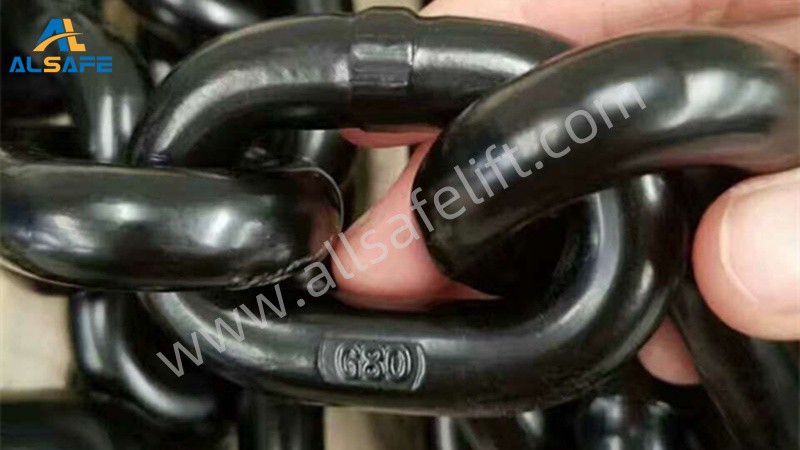

The surface of the link of G80 lifting chain is usually embossed with "G80" or its product specifications to facilitate user identification and traceability.

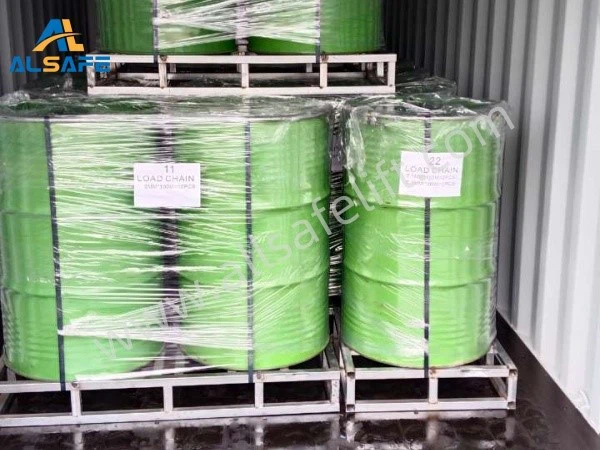

Product packaging and transportation
Product packaging
Packaging materials for G80 lifting chains may include cartons, wooden boxes, iron barrels or pallets, etc.
Packing List
Product information, specifications, quantity, weight, safety markings, etc. will be marked on the packaging to ensure safety and traceability during transportation and storage.
