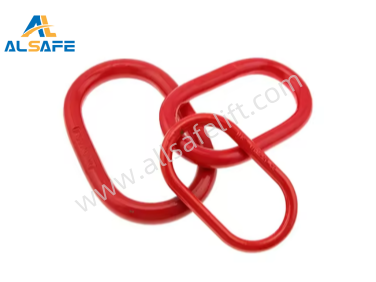

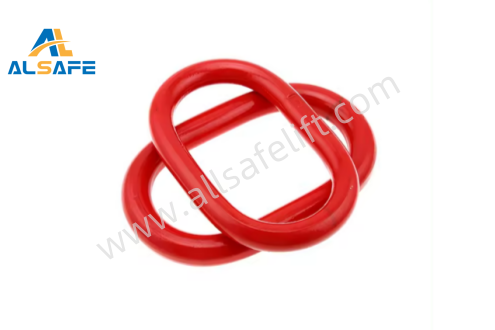

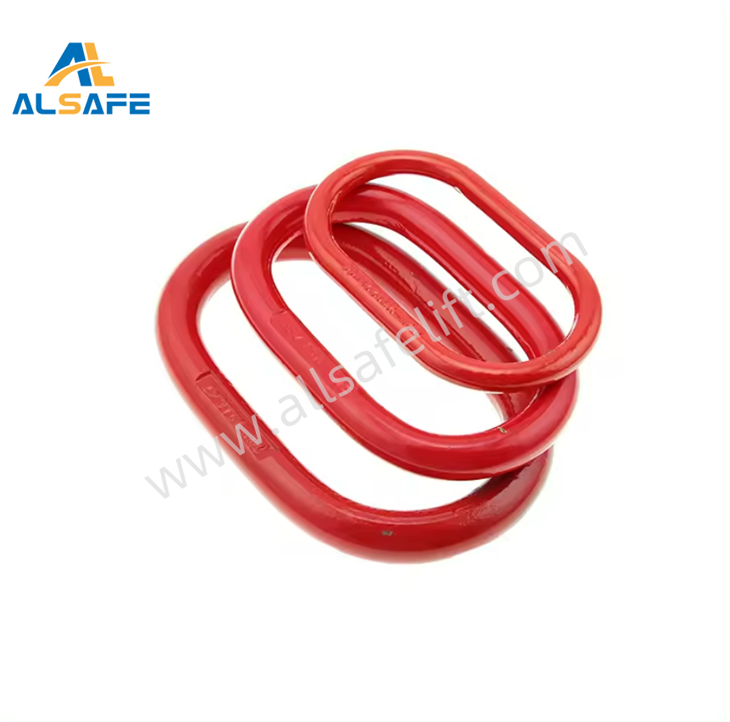

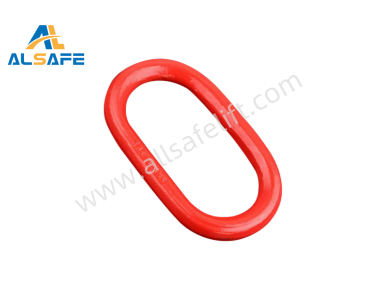

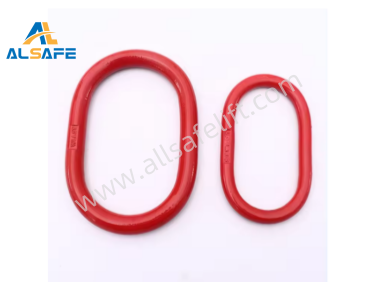

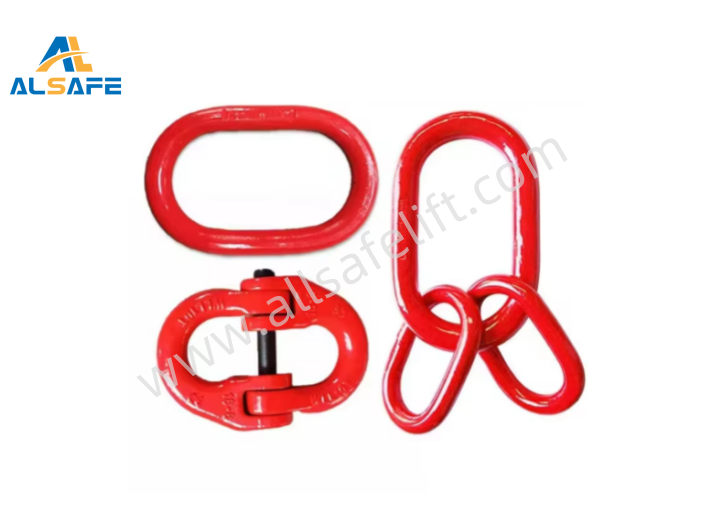

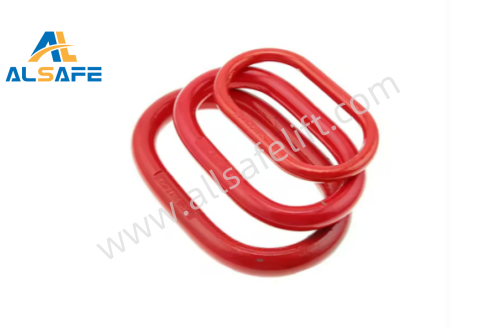

G80 Master Link
Design factor of 4:1 for chain and 5:1 for wire rope
Individually proof test to 2.5 times,the workking load limit (4:1)
Company advantages
Our company has advanced production technology and strict quality control system. With rich industry experience and a professional R&D team, we are able to continuously innovate and launch high-quality products that meet market demand.
Professional services
We are customer-centric and have established a comprehensive pre-sales, sales and after-sales all-round service network, and have won the trust and long-term cooperation of many customers around the world.
5000+
Square Meters Built
800+
Enterprise Employees
100+
Cooperating Partner
20+
Years Experience
Product advantages
Excellent materials and workmanship
G80 Master Link is made of high-strength alloy steel. After a special heat treatment process, it has extremely high tensile strength and fatigue resistance.
Powerful load capacity
This product is designed to withstand high-intensity tensile forces, and its rated load capacity is at the leading level among similar products.
Safe and reliable design
The lock structure has been carefully optimized, which is not only easy and fast to operate, but also effectively prevents accidental disengagement.
Maintenance
Regular inspection
The G80 Master Link should be checked regularly. Check the appearance of the link for wear, deformation, cracks and other abnormalities, and whether the lock can open and close normally and is locked firmly. It is recommended to conduct a comprehensive inspection every certain period of use.
Cleaning and maintenance
The surface of the product may be contaminated with dust, oil, sediment and other impurities. Use cleaning tools to clean it regularly to prevent dirt from corroding the product material. After cleaning, anti-rust oil can be applied appropriately to maintain its good anti-corrosion properties.
Storage considerations
When the product is not in use temporarily, it should be stored in a dry, well-ventilated environment away from direct sunlight and moisture. G80 Master Links can be placed neatly to avoid squeezing and bumping into each other.
Product details introduction
High grade Alloy Steel (Quenched and Tempered ) material
Design factor of 4:1 for chain and 5:1 for wire rope
Individually proof test to 2.5 times,the workking load limit (4:1)
Each link has a Product Identification Code (PIC) for material traceability , along with the size and OEM mark as per customer's request
Larger inside width and length for use with thimble
product specifications
MASTER LINK | |||||
Model | Size D (mm) | Dimensions(mm) | WLL 4:1 (t) | Weight (kg) | |
L | B | ||||
MLW-8-13 | 13 | 115 | 60 | 2.50 | 0.4 |
MLW-8-16 | 16 | 120 | 70 | 4.25 | 0.6 |
MLW-8-16A | 16 | 170 | 100 | 4.25 | 0.8 |
MLW-8-20 | 20 | 170 | 90 | 6.70 | 1.3 |
MLW-8-22 | 22 | 170 | 90 | 8.20 | 1.6 |
MLW-8-22A | 22 | 210 | 110 | 8.20 | 1.65 |
MLW-8-25 | 25 | 190 | 103 | 10.70 | 2.3 |
MLW-8-28 | 28 | 270 | 140 | 11.80 | 4.0 |
MLW-8-32 | 32 | 270 | 140 | 17.10 | 5.3 |
MLW-8-38 | 38 | 270 | 140 | 28.10 | 7.5 |
MLW-8-45 | 45 | 320 | 170 | 39.30 | 12.3 |
FAQ
Q: What is the applicable temperature range of G80 Master Link?
A: G80 Master Link can be used normally in a wide temperature range, and can generally adapt to ambient temperatures from -40℃ to +200℃. However, when using it for a long time in extreme temperature environments, it is recommended to consult our technicians in advance to ensure that its performance is not affected.
Q: How do I determine the correct specifications for my G80 Master Link?
A: You can make your selection based on the design parameters and actual usage requirements of the equipment by referring to our product specification table. If you still have questions about specification selection, please feel free to contact our service team, who will provide you with professional selection suggestions.
Q: Can the G80 Master Link be customized with special sizes or markings?
A: Yes, our company has customization capabilities. If you have special size or marking requirements, you can communicate with our sales department and provide detailed customization requirements. We will evaluate the feasibility of customization based on your needs and provide you with a customization plan and quotation.
